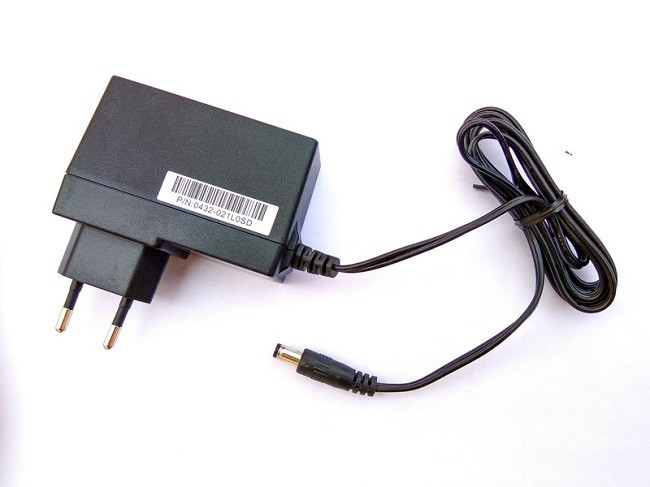

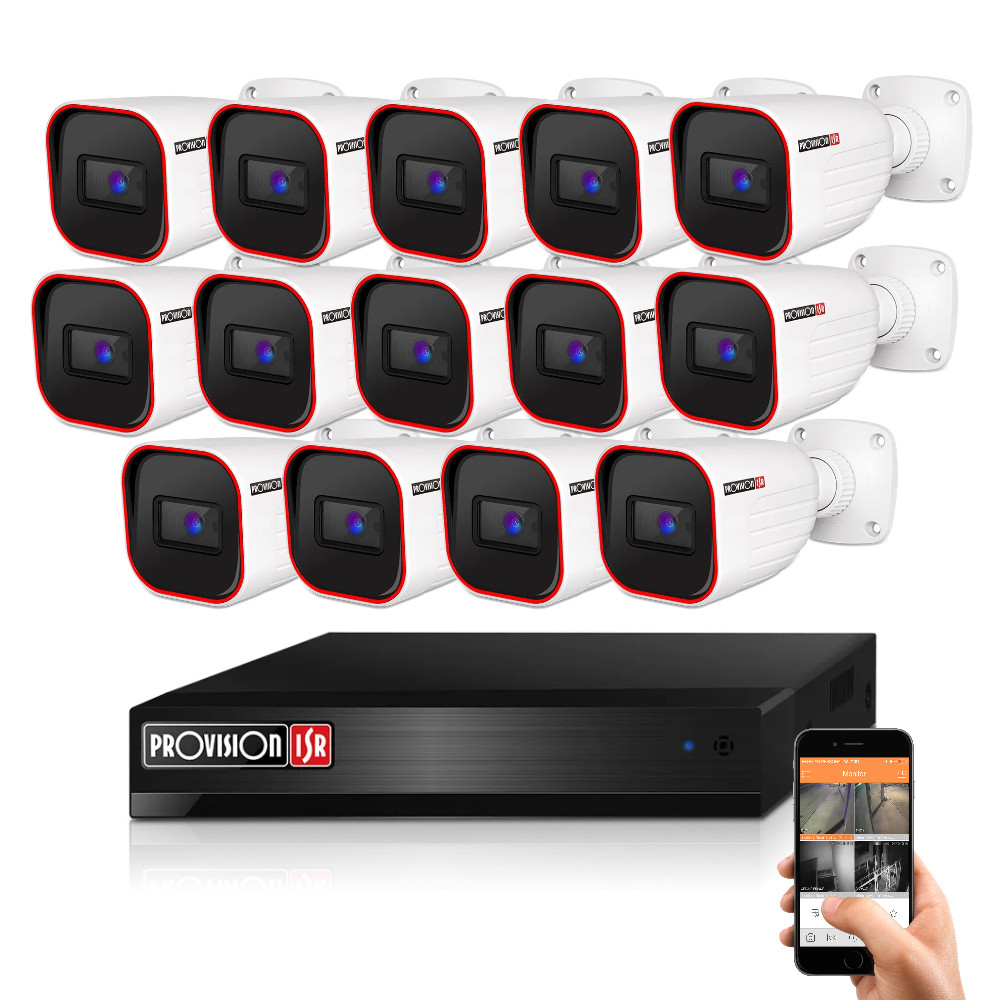

Discover the Provision AHD-23 surveillance camera system, ideal for enhancing home and office security. The kit includes fourteen 2 megapixel, Full HD security cameras that deliver excellent image quality even in low-light conditions with night mode. It also comes with a 16-channel XVR digital recorder, providing remote access for flexible monitoring. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate, making it a practical choice for those looking for a reliable security solution.
Provision AHD camera
Up to 16 cameras can be connected to the DVR
Maximum viewing distance in complete darkness
Resistant to weather conditions

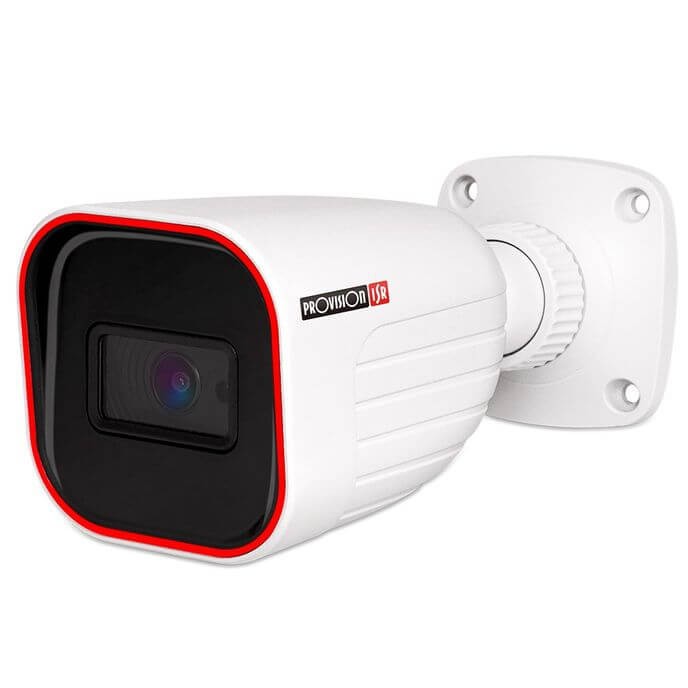

The Provision I2-320A-28 is an advanced security camera that provides an excellent solution for both indoor and outdoor use. This model is a 2 megapixel, Full HD 1080p camera that delivers sharp, clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide, 90-degree field of view. Its night vision range is 20 meters. The IP67-rated weatherproof housing is resistant to water and dust, helping ensure reliability and durability in a wide range of environments.

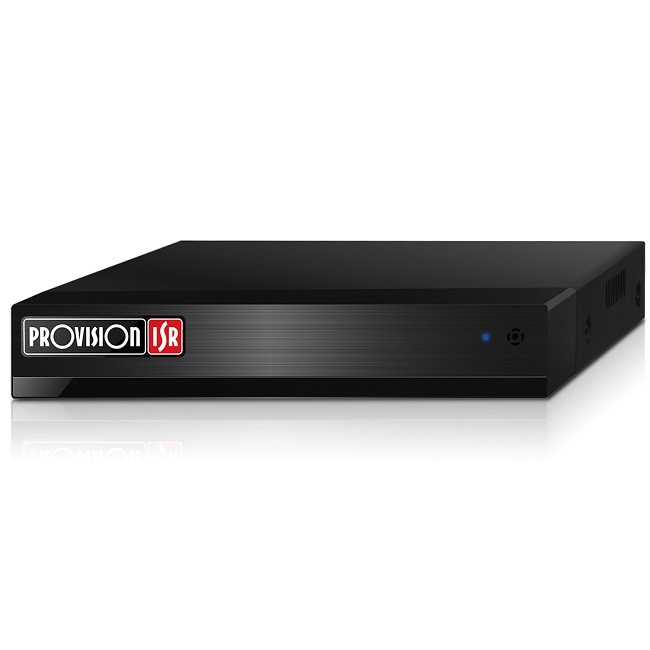

The Provision SH-16200A5N-2L(MM) XVR recorder delivers versatile hybrid digital video recording. As a hybrid recorder, it supports both analog and advanced IP cameras with strong image quality and features. It offers 16 AHD/CVI/TVI/analog channels and 2 IP channels. A monitor can be connected via its VGA and HDMI outputs. Recording is available on 16 AHD/CVI/TVI/analog channels and 2 IP channels, up to 2MP Full HD, 400 FPS. It supports simultaneous playback on four channels with intelligent video analytics. Connectivity includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 and 100 Mbps RJ-45 network port.
For our camera systems, customers can choose between two cabling options: DIY kit or pre-assembled cable kit.

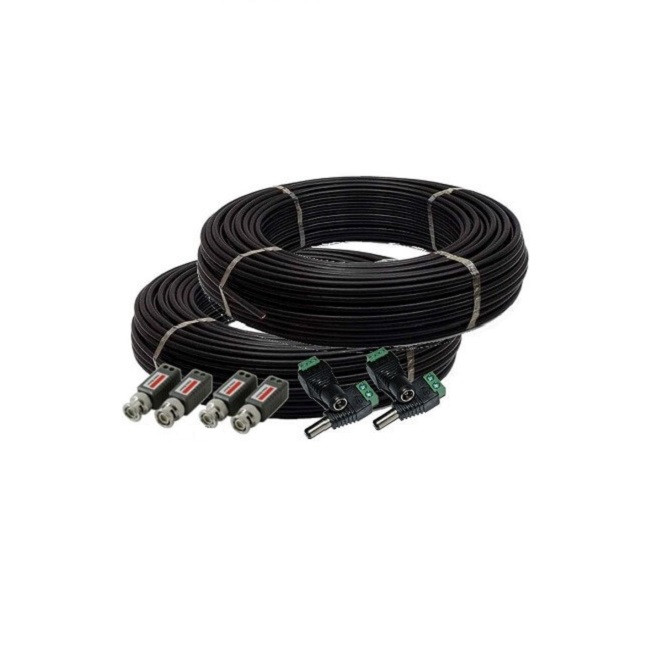

DIY kit: From each camera to the central unit you only need to run a single cable that carries both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the cable ends – to help with this, we have created a detailed installation guide, available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The kit includes 10 meters of UTP cable per camera. If you need more cable, simply let us know in the order comments (+100 Ft/meter).
Pre-assembled cable kit: In this case, the connectors are factory-fitted on the camera cable and cannot be removed. You only need to connect the recorder, camera power supply and cameras, without any cable assembly. The basic kit includes 10 meters of COX10 cable per camera. If you need more cable, you can indicate this in the order comments (20 m COX20 and 30 m COX30 options are also available).
The Provision Cam2 app allows users to manage their security devices remotely. The application provides live view, playback and device configuration options. AI-based video analytics features help reduce false alarms, while users can customize notifications and manage devices from anywhere. The app also allows you to share camera access with family members and other trusted contacts.
