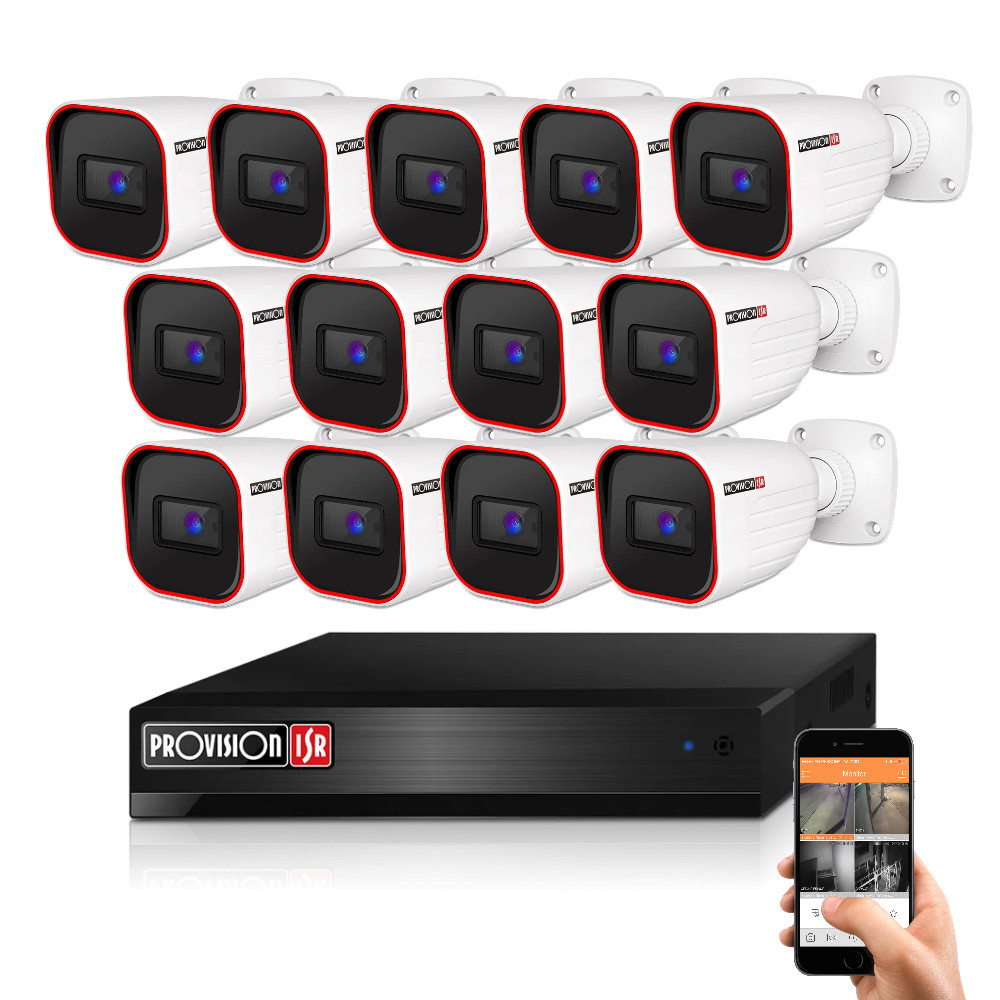

Discover the Provision AHD-23 surveillance camera system, ideal for enhancing security at home or in the office. The kit includes thirteen 2 megapixel Full HD security cameras that deliver excellent image quality even in low-light conditions thanks to night mode. It also comes with a 16-channel XVR digital recorder, enabling remote access for flexible monitoring. With the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate, making it a practical choice for anyone looking for a reliable security solution.
Provision AHD camera
Connect up to 16 cameras to the DVR
Maximum viewing distance in complete darkness
Weather-resistant housing

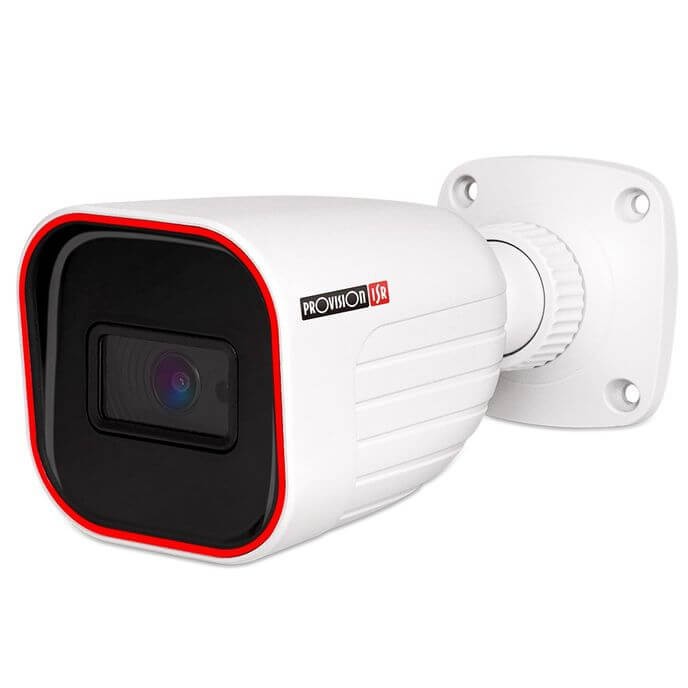

The Provision I2-320A-28 is an advanced security camera that provides an excellent solution for both indoor and outdoor use. This model is a 2 megapixel FULL HD 1080p camera that delivers sharp, clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide 90° field of view. Night vision range is up to 20 meters. Its IP67-rated water- and dust-resistant housing withstands harsh weather conditions, ensuring reliability and durability in a wide range of environments.

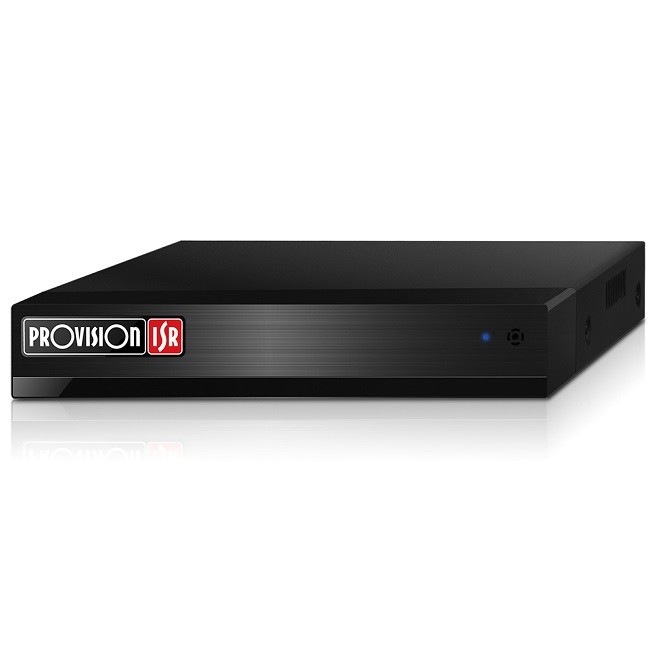

The Provision SH-16200A5N-2L(MM) XVR recorder delivers high-quality hybrid digital video recording. As a hybrid recorder, it supports both analog and advanced IP cameras with strong image quality and feature set. It offers 16 AHD/CVI/TVI/Analog channels and 2 IP channels. A monitor can be connected via VGA or HDMI outputs. Recording is possible on 16 AHD/CVI/TVI/Analog channels and 2 IP channels at up to 2MP Full HD, 400 FPS. It supports simultaneous playback of four channels with intelligent video analytics. Connectivity includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 and 100 Mbps RJ-45 network.
For our camera systems, customers can choose between two package types: DIY cable kit and pre-assembled cable kit.

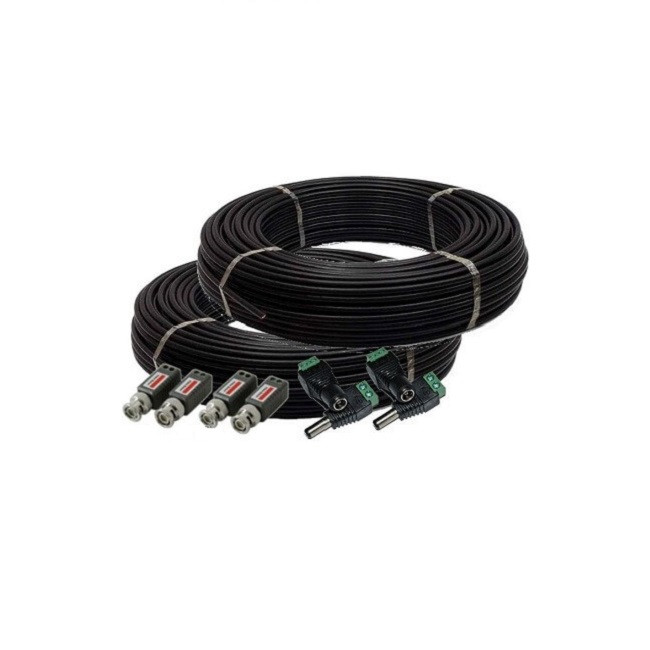

DIY cable kit: From each camera to the central unit you only need to run a single cable that carries both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the cable ends – to assist with this, we have created a step-by-step installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 meters of UTP cable per camera. If you need longer cables, you can indicate this in the order comments (+100 Ft/meter).
Pre-assembled cable kit: In this case, the connectors are factory-fitted to the camera cable ends and cannot be removed, so you only need to plug together the recorder, camera power supply and cameras – no wiring work required. The basic package includes 10 meters of COX10 cable per camera. If you need longer cables, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).
The Provision Cam2 app enables users to manage their security devices remotely. The application provides live view, playback and device configuration options. AI-based video analytics help reduce unwanted alerts, while users can customize notifications and manage devices from anywhere. The app also allows you to share camera access with family members or other trusted people.
