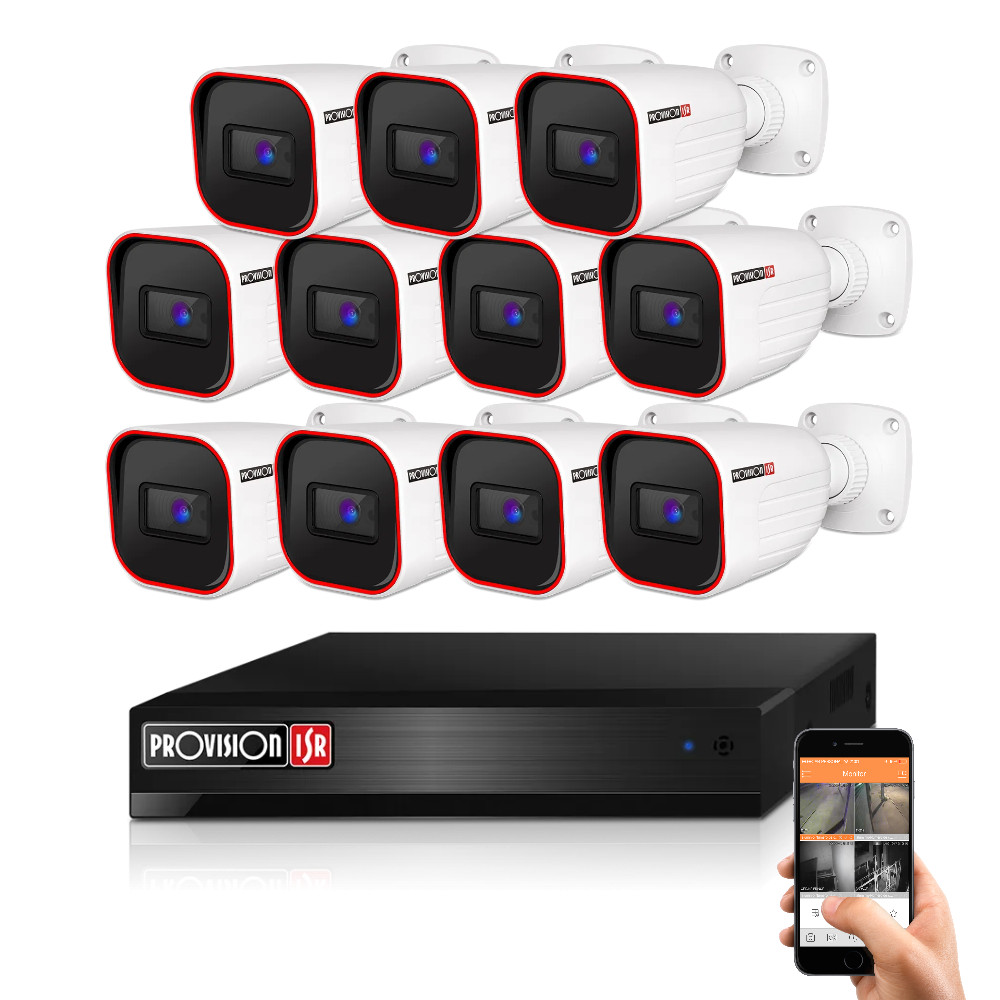

Discover the Provision AHD-23 surveillance camera system, ideal for enhancing home and office security. The kit includes eleven 2 megapixel Full HD security cameras that deliver high-quality images even in low-light conditions with night mode. It also comes with a 16-channel XVR digital recorder, offering remote access for flexible monitoring. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate, making it a practical choice for anyone looking for a reliable security solution.
Provision AHD camera
The DVR can connect up to 16 cameras
Maximum viewing distance in complete darkness
Weather-resistant housing

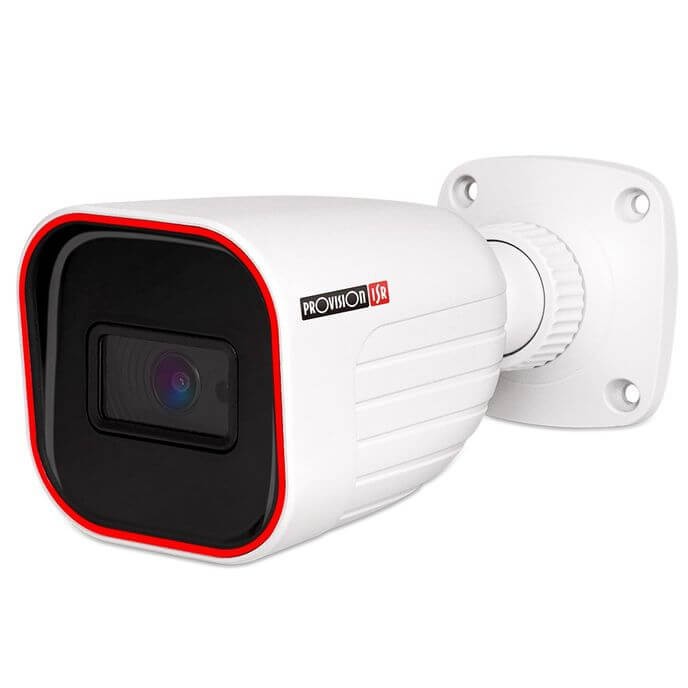

The Provision I2-320A-28 is an advanced security camera, providing an excellent solution for both indoor and outdoor use. This model is a 2 megapixel FULL HD 1080p camera that delivers sharp, clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide 90° field of view. Its night vision range is 20 meters. The IP67-rated water- and dust-resistant housing withstands harsh weather conditions, ensuring reliability and durability in a wide range of environments.

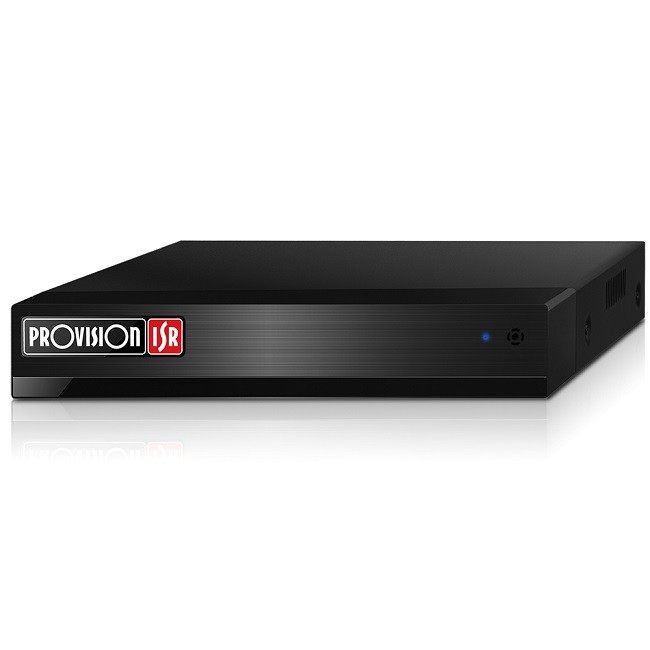

The Provision SH-16200A5N-2L(MM) XVR recorder delivers high-quality hybrid digital video recording. As a hybrid recorder, it supports both analog and advanced IP cameras with excellent image quality and features. It offers 16 AHD/CVI/TVI/Analog channels and 2 IP channels. A monitor can be connected via its VGA and HDMI outputs. Recording is possible on 16 AHD/CVI/TVI/Analog channels and 2 IP channels at up to 2MP Full HD, 400 FPS. It supports simultaneous playback on four channels with intelligent video analytics. It includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 ports, and a 100 Mbps RJ-45 network interface.
For our camera systems, customers can choose between two cabling options: DIY kit or pre-assembled cable kit.

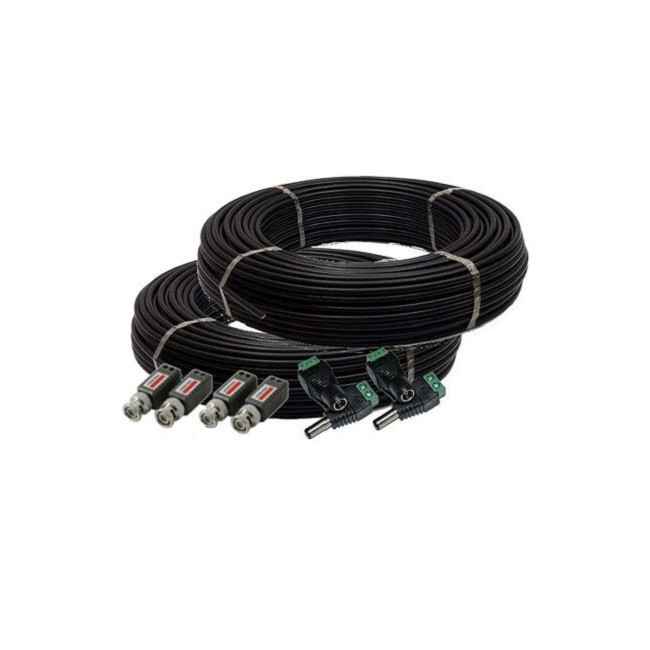

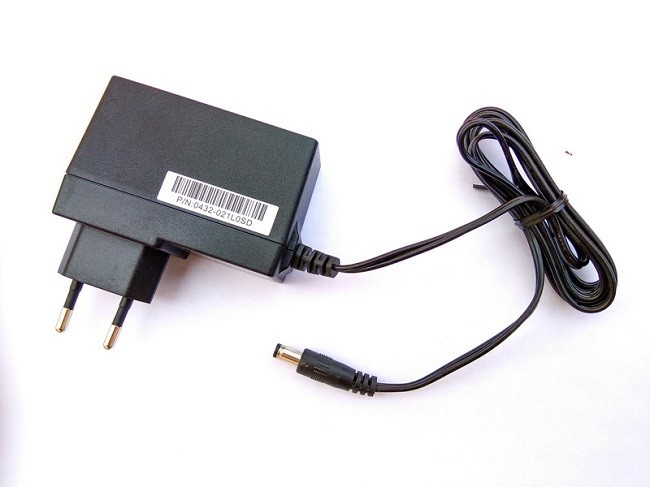

DIY kit: From each camera to the central unit you only need to run a single cable that carries both power and video signal. The required connectors (video balun + power connector) are installed by the customer on the cable ends – to help with this, we have prepared a detailed installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The kit includes 10 meters of UTP cable per camera. If you need longer cables, you can let us know in the order comments (+100 Ft/meter).
Pre-assembled cable kit: In this case, the connectors are already factory-installed on the camera cable ends and cannot be removed. This way you only need to plug the recorder, camera power supply and cameras together, with no additional wiring work. The basic kit includes 10 meters of COX10 cable per camera. If you need longer cables, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).
The Provision Cam2 app allows users to fully manage their security devices. The application provides live view, playback and device configuration. AI-based video analytics features help reduce false alerts, while users can customize notifications and manage devices remotely. The app also lets you share camera access with family members or other trusted contacts.
