Provision AHD-23 10-camera surveillance system 2MP

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Használati útmutató

Details

Provision 10-camera security system with 2MP Full HD resolution, 20 m night vision for indoor and outdoor use

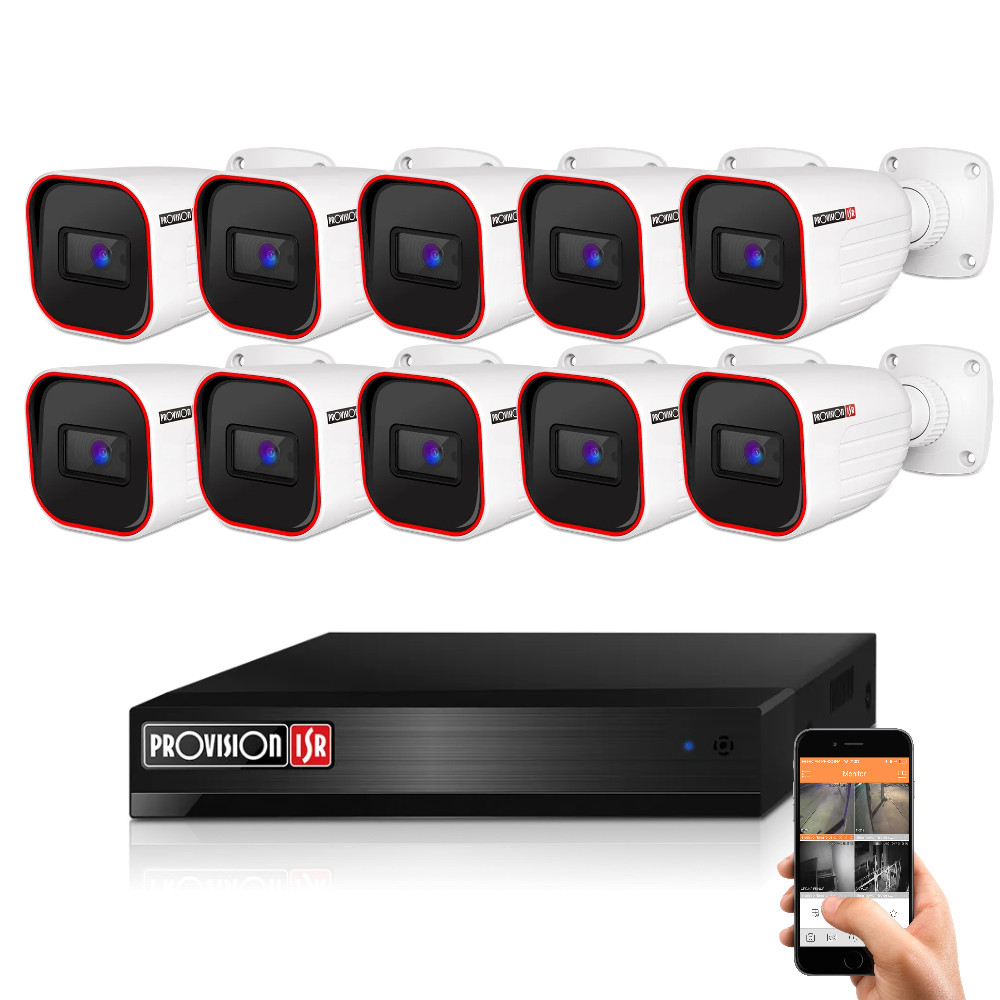

Discover the Provision AHD-23 surveillance camera system, ideal for enhancing home and office security. The kit includes ten 2 megapixel Full HD security cameras that deliver detailed image quality even in low light conditions with night mode. It also comes with a 16-channel XVR digital recorder that supports remote access for convenient monitoring from anywhere. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate, making it a practical choice for those looking for a reliable security solution.

2

MEGAPIXEL

Provision AHD camera

16

CHANNELS

Connect up to 16 cameras to the DVR

20 m

NIGHT VISION RANGE

Maximum viewing distance in complete darkness

IP67

RATING

Weather-resistant housing

10 Provision Full HD 2MP security cameras for clear images indoors and outdoors

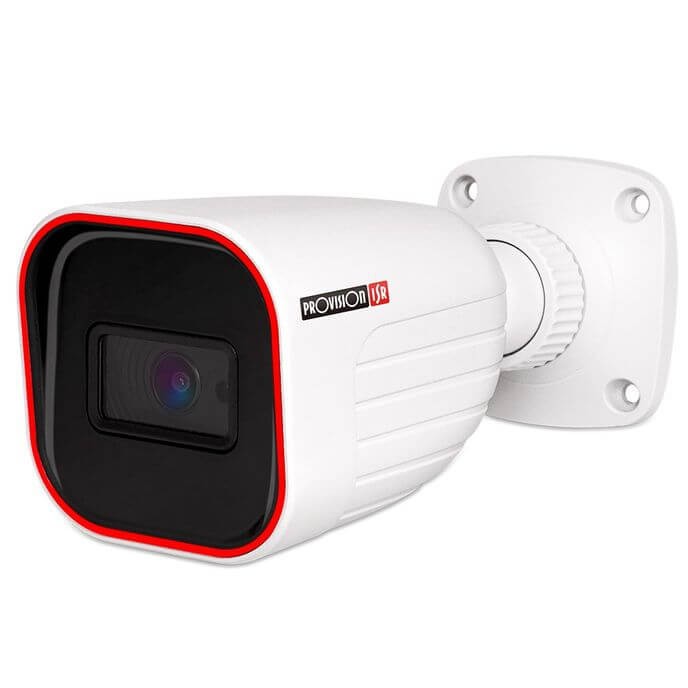

The Provision I2-320A-28 is an advanced security camera that provides a solid solution for both indoor and outdoor use. This model is a 2 megapixel Full HD 1080p camera that delivers sharp, clear images even in low light. The built-in 2.8 mm fixed lens offers a 90° wide viewing angle, while the night vision range is up to 20 meters. Its IP67-rated water- and dust-resistant housing withstands harsh weather conditions, helping ensure long-term reliability in a wide range of environments.

1 Provision 16-channel 2MP hybrid XVR recorder with smart features

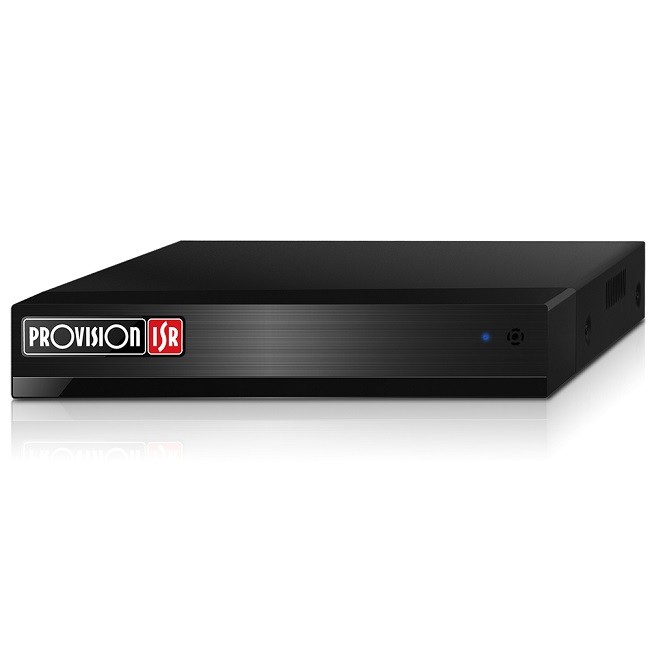

The Provision SH-16200A5N-2L(MM) XVR recorder provides hybrid digital video recording. As a hybrid recorder, it supports both analog and IP cameras with consistent image quality and a wide range of features. It offers 16 AHD/CVI/TVI/analog channels and 2 IP channels. A monitor can be connected via VGA or HDMI outputs. Recording is possible on 16 AHD/CVI/TVI/analog channels and 2 IP channels at up to 2MP Full HD, 400 FPS. It supports simultaneous playback on four channels with intelligent video analytics. The device includes 1 x SATA port (supports up to 6 TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network interface.

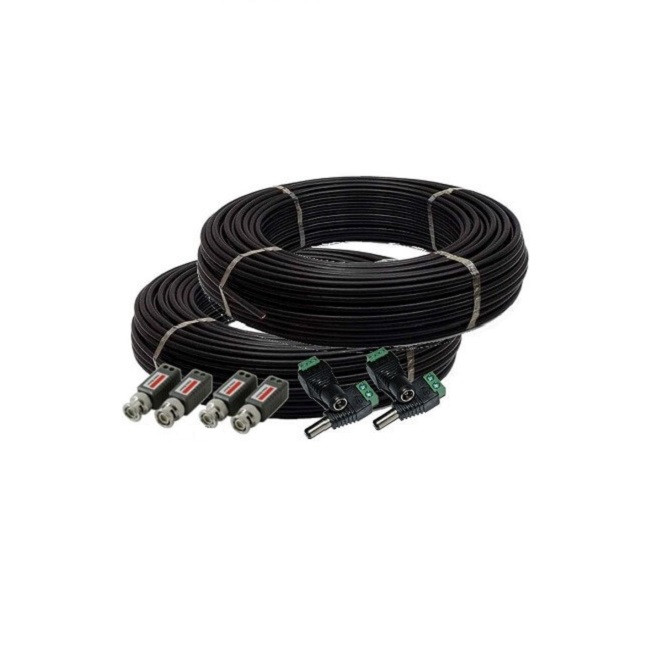

Camera system installation kit with all essential components

For our camera systems, customers can choose between two cable packages: a DIY cable kit or a pre-assembled cable kit.

DIY cable kit: From each camera to the central unit you only need to run a single cable that carries both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the end of the cable. To support this, we have prepared an installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 meters of UTP cable per camera. If you need longer cables, you can indicate this in the order comments (+100 Ft/meter).

Pre-assembled cable kit: In this case, the connectors are factory-fitted to the ends of the camera cables and cannot be removed. You only need to connect the recorder, camera power supply and cameras, with no extra wiring work. The basic package includes 10 meters of COX10 cable per camera. If you need longer cables, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).

Online access via Provision Cam2 mobile application

The Provision Cam2 app allows users to manage their security devices remotely. The application offers live view, playback and device configuration options. Its AI-based video analysis features help reduce false alerts, and users can customize notifications and manage devices remotely. The app also allows you to share camera access with family members or other trusted contacts.

Data

Biztonsági kamerák száma:

10

Kameradesign:

Cső

Area of ​​use:

Kültér és beltér

Functions:

, ,

Reviews

Be the first to write a review!

Write a review

Használati útmutató

Általános használati szerelési utasítás

• Szerelési Telepítési Útmutató
• Provision DVR OSSIA menüvel rendelkező

• Provision DVR/NVR jelszó visszaállítás

---

Letöltések

Provision IP tool	Letöltés
Provision kimentett felvétel lejátszó [OSSIA menüs rögzítőkhöz]	Letöltés
Provision CMS program [Apple MAC OS verzió]	Letöltés
