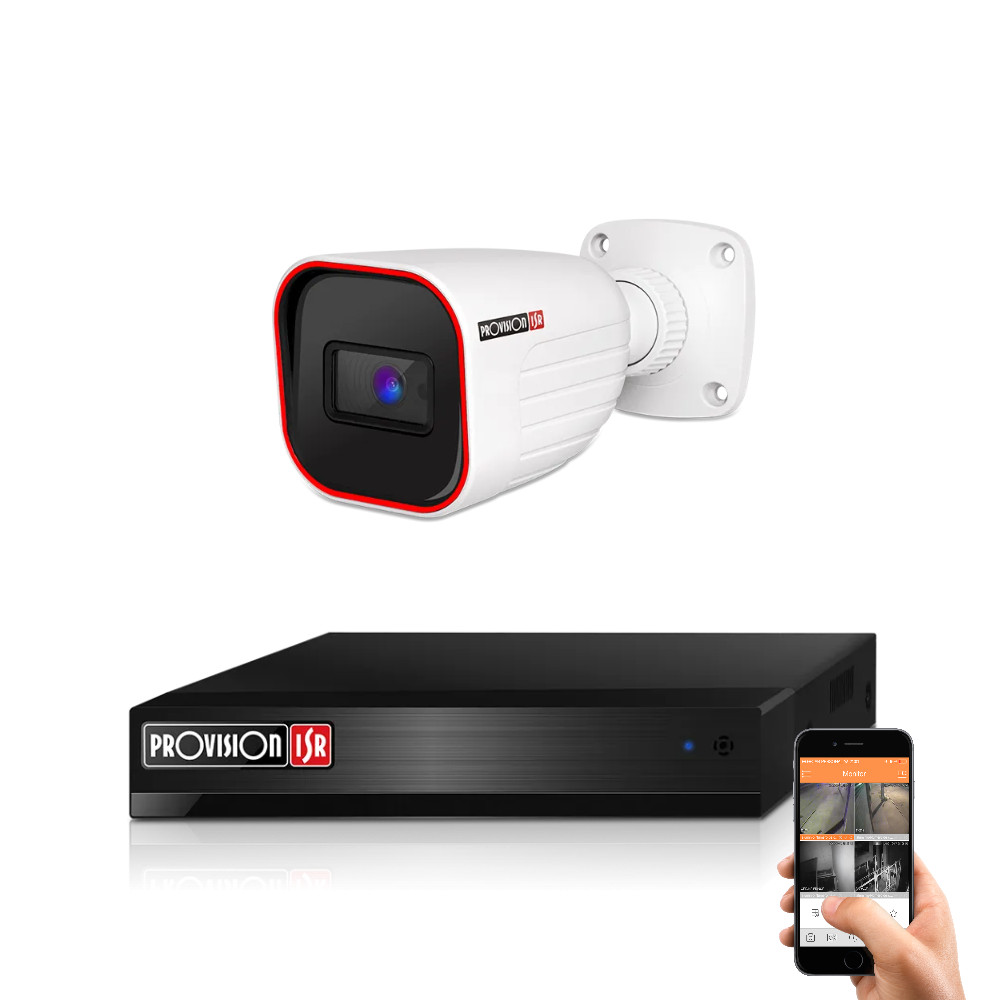

Provision AHD-23 1-camera surveillance system 2MP

Key features at a glance

• 2 megapixel Provision AHD camera for detailed Full HD imaging
• 4 channels on the DVR – connect up to 4 cameras
• 20 m night vision range in complete darkness
• IP67 rating – weather-resistant housing for outdoor use

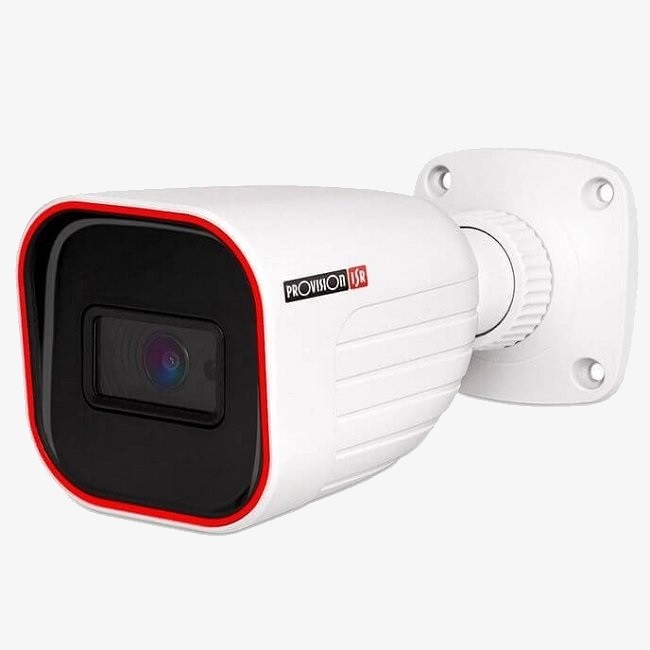

1 Provision Full HD 2MP security camera – clear view indoors and outdoors

The Provision I2-320A-28 is a versatile security camera designed for both indoor and outdoor use. This 2 megapixel, Full HD 1080p camera delivers sharp, clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide, approx. 90° field of view, while the 20 m infrared night vision ensures monitoring even in complete darkness.

With its IP67-rated, water- and dust-resistant housing, the camera is engineered to withstand challenging weather conditions, providing reliable operation and long-term durability in a wide range of environments.

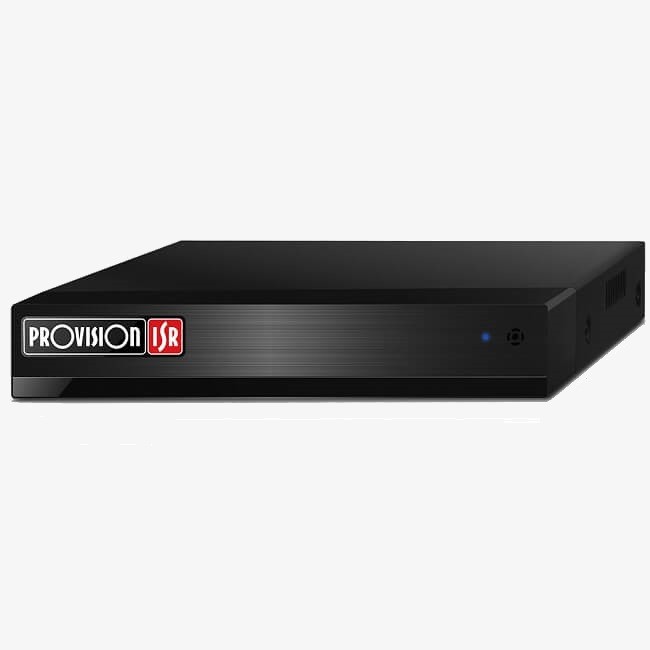

1 Provision 4-channel 2MP hybrid XVR recorder with smart functions

The Provision SH-4100A5N-2L(MM) XVR is a hybrid digital video recorder that supports both analog and IP cameras. It offers high-quality recording and flexible configuration options:

• 4 x AHD/CVI/TVI/Analog channels + 2 x IP channels
• Recording up to 2MP Full HD, 100 FPS total
• Simultaneous playback of up to 4 channels
• Intelligent video analytics functions for more efficient monitoring
• VGA and HDMI outputs for connecting a monitor
• 1 x SATA port (supports up to 6 TB HDD, not included)
• 2 x USB 2.0 ports
• 100 Mbps RJ-45 network interface for remote access

Installer packages – choose the cabling option that suits you

You can choose between two cabling packages for this camera system: a DIY cabling package or a pre-assembled cable package.

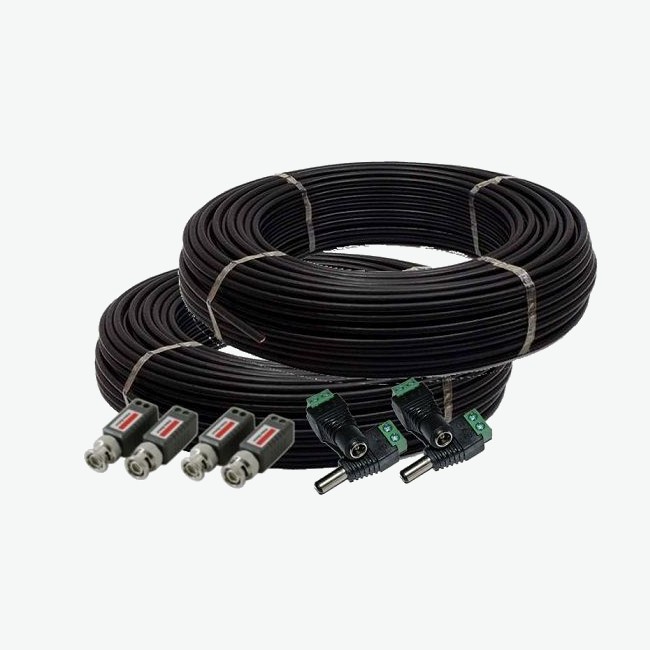

DIY cabling package

With the DIY option, you only need to run one cable per camera to the central unit, carrying both power and video signal. The required connectors (video balun + power connector) are fitted by you to the cable ends. A detailed installation guide is available here:

Installation and setup guide

Basic hand tools (side cutter, screwdriver, utility knife) are sufficient; no crimping tool is needed. The package includes 10 m of UTP cable per camera. If you need longer cables, you can request this in the order comments (additional cost: +100 Ft/m).

Pre-assembled cable package

With the pre-assembled option, the camera cables come with factory-fitted connectors that cannot be removed. This allows for a quick, tool-free setup: simply connect the recorder, camera power supply and camera.

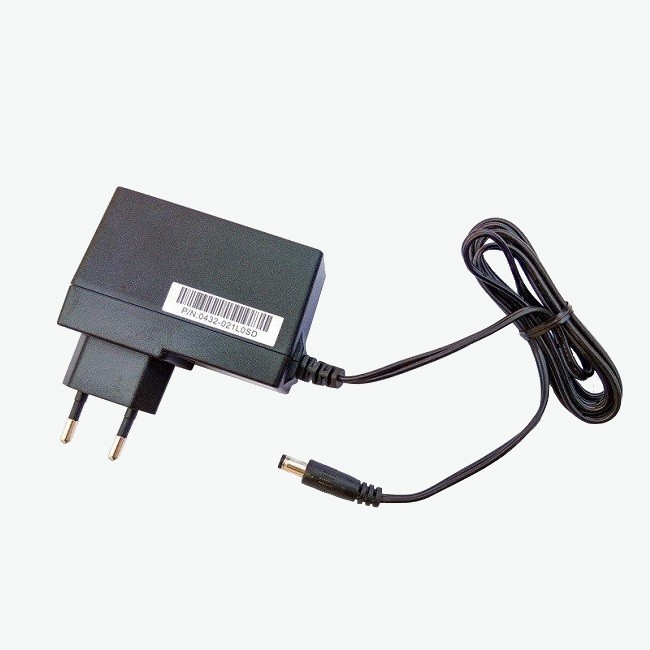

The base package includes 10 m of camera cable per camera, equipped with BNC and 12 V power connectors:

• 10 m pre-assembled camera cable with BNC and 12 V power connector

If you require longer cables, you can specify this in the order comments. Additional options:

• 20 m COX20 pre-assembled cable
• 30 m COX30 pre-assembled cable

Remote access via Provision Cam2 mobile app

With the Provision Cam2 mobile app, you can manage your security devices remotely. The app provides:

• Live view from your cameras
• Playback of recorded footage
• Remote device configuration

AI-based video analysis features help reduce false alarms, while customizable notifications allow you to stay informed about important events. You can also share camera access with family members or other trusted users, so they can view the live feed when needed.
