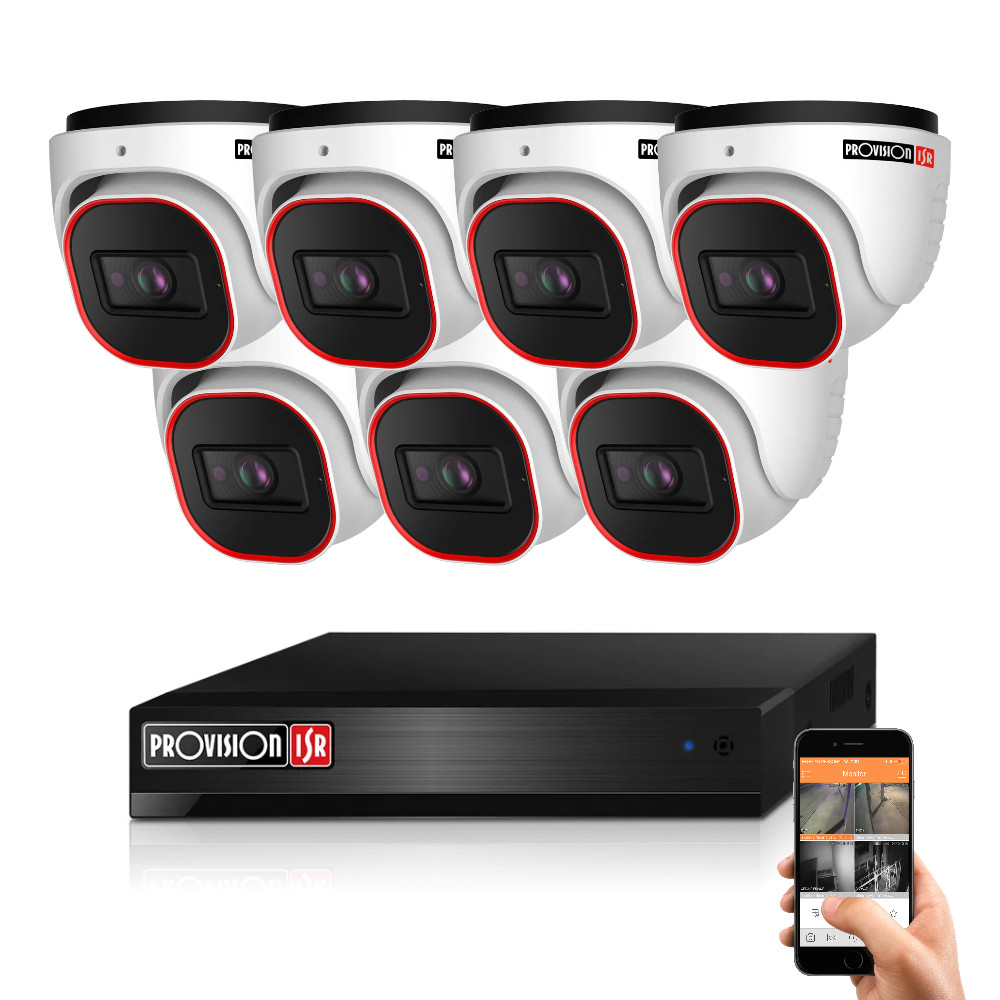

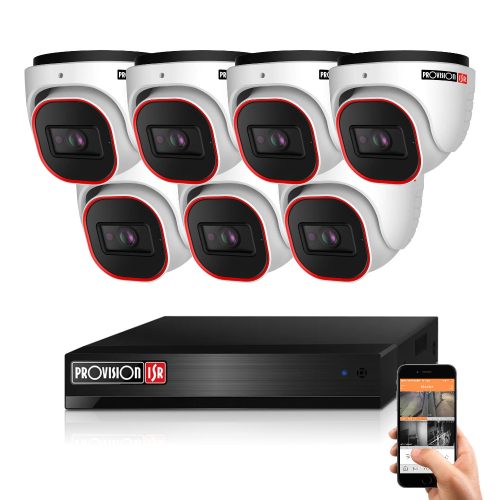

The Provision AHD-20 security camera system offers outstanding 5MP resolution and up to 20 m viewing distance, delivering sharp, detailed images day and night. The kit includes an 8‑channel XVR digital recorder that supports remote video access, so you can easily check the footage from your home or office cameras anytime, from anywhere. Installation is straightforward with single‑cable wiring, thanks to the included installer kit with camera power supply, video baluns, UTP cable and power connectors. The hard drive is not included, but can be purchased separately in our webshop. This camera system is an excellent choice if you need a reliable, easy‑to‑use security solution for your home or business.
Provision AHD dome camera
Connect up to 8 cameras to the DVR
Maximum viewing distance in complete darkness
Weather‑resistant housing

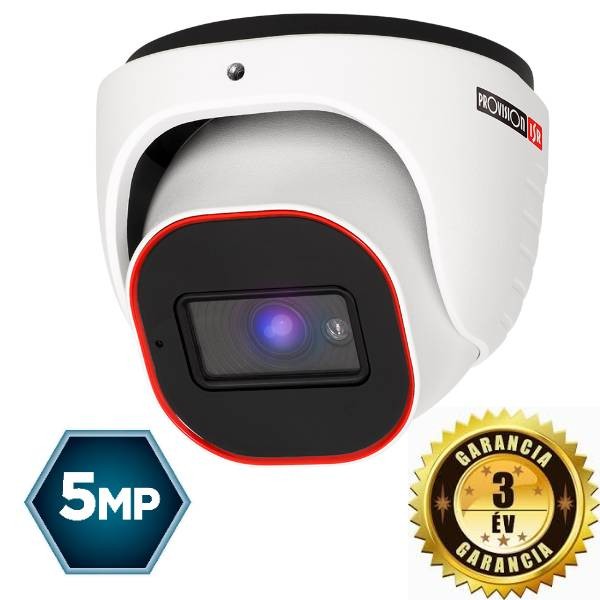

The Provision DI-350A-28 is an advanced 5‑megapixel dome security camera, ideal for both outdoor and indoor use. The 5MP resolution delivers sharp, clear images even in poor lighting conditions. It features a built‑in 2.8 mm fixed lens providing an approx. 90° field of view. Infrared LEDs ensure up to 20 m night vision even at zero ambient light. The metal housing with IP67 weather and dust protection enables reliable operation in demanding outdoor environments.

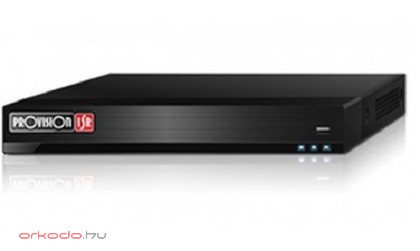

The Provision SH-8100A5N-5L(1U) is a 5‑megapixel hybrid digital video recorder. It supports both analogue and advanced IP cameras with high image quality and intelligent features. It can handle AHD/CVI/TVI/Analogue cameras on 8 channels and IP cameras on 4 channels. A monitor or TV can be connected via VGA and HDMI outputs. Recording is available on 8 AHD/CVI/TVI/Analogue channels and 4 IP channels, up to 5MP 2K resolution. It supports simultaneous playback on 4 channels with intelligent analytics. Connectivity includes 1 x SATA port (max. 6 TB HDD, not included), 2 x USB 2.0 and a 100 Mbps RJ‑45 network port.
For our camera systems, customers can choose between two cabling options: DIY kit or pre‑assembled cable kit.

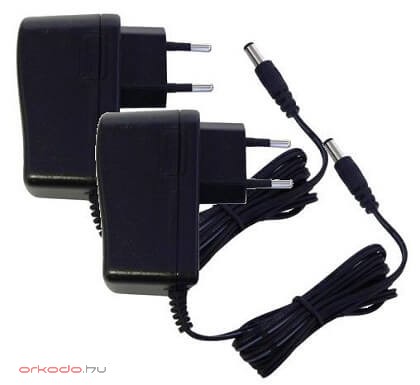

DIY kit: From each camera only a single cable needs to be routed to the central unit, carrying both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the cable ends. To help with this, we have created a detailed installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The kit includes 10 m of UTP cable per camera. If you need longer cables, you can let us know in the order comments (+180 Ft/meter).
Pre‑assembled cable kit: In this case, the camera cable ends are already factory‑fitted with connectors and cannot be removed. You only need to connect the recorder, camera power supply and cameras—no wiring work required. The basic kit includes 10 m COX10 cable per camera. If you need longer cables, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).
The Provision Cam2 app enables users to fully manage their security devices. The application provides live view, playback and device configuration. AI‑based video analytics help reduce false alarms, while users can customise notifications and manage devices remotely. The app also allows you to share camera access with family members or other authorised users.
