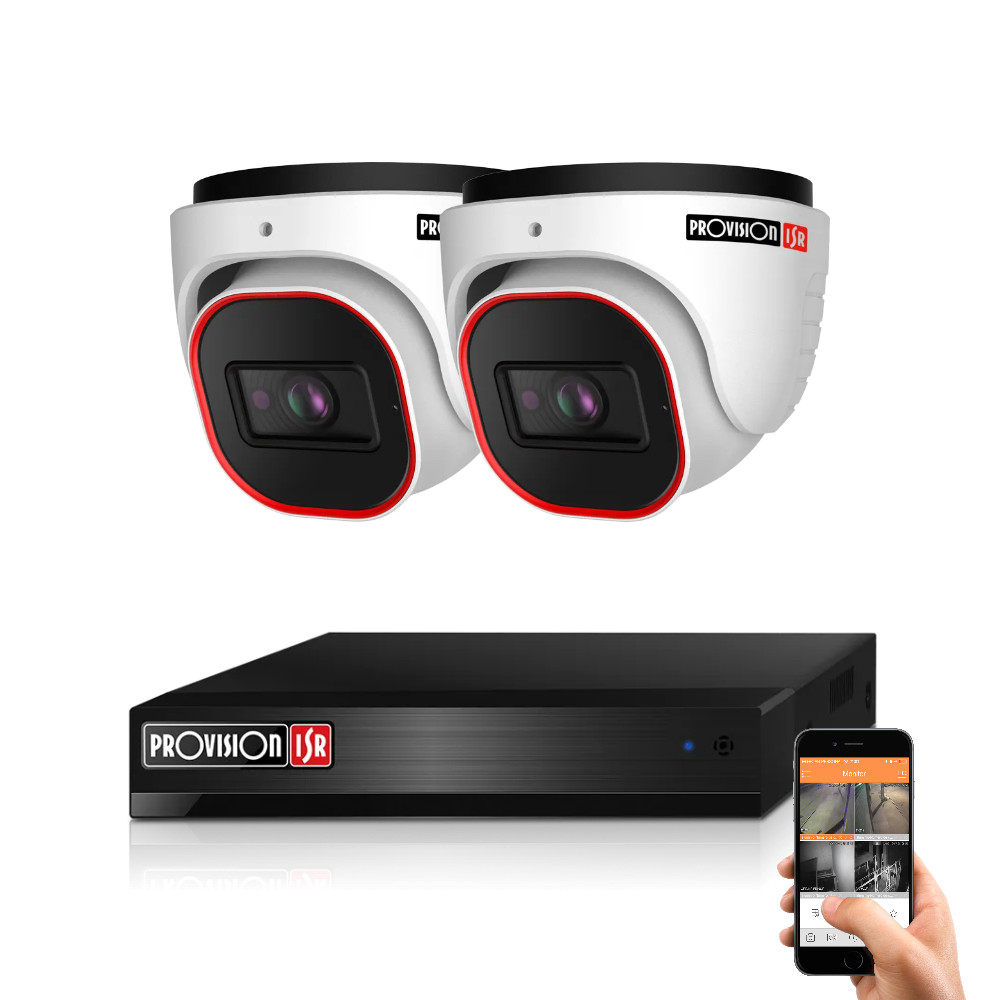

The Provision AHD-20 security camera system offers outstanding 5MP resolution and 20 m viewing distance, delivering sharp, detailed image quality day and night. The kit includes a 4-channel XVR digital recorder that allows remote video access, so you can easily check recordings from your home or office security cameras anytime, from virtually anywhere. Installation is straightforward with single-cable wiring, thanks to the included installer pack containing camera power supply, video balun, UTP cable and power connector. The hard drive is not included but can be purchased separately in our online store. This camera system is a practical choice for anyone looking for a reliable, easy-to-use security solution for their home or business.
Provision AHD dome camera
You can connect up to 4 cameras to the DVR
Maximum viewing distance in complete darkness
Weather-resistant housing

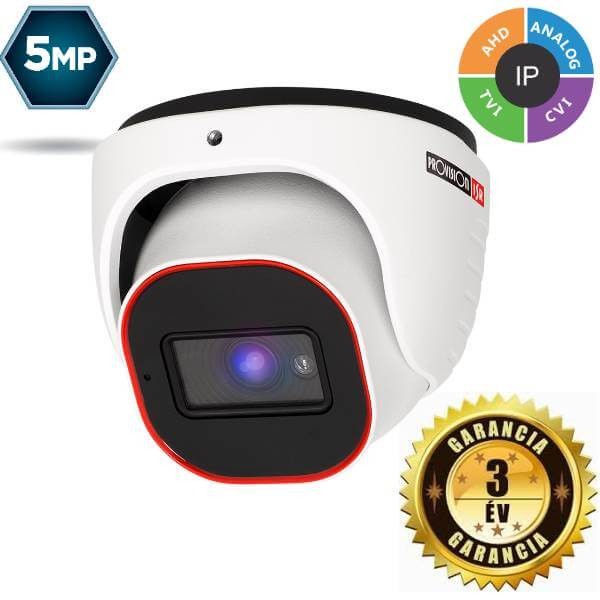

The Provision DI-350A-28 is an advanced 5 megapixel dome security camera, ideal for both outdoor and indoor use. Thanks to its 5MP resolution, it delivers clear, sharp images even in low-light conditions. It features a built-in 2.8 mm fixed lens, offering an approx. 90° field of view. The infrared LEDs used for night monitoring provide up to 20 m viewing distance even at zero illumination. The metal housing with IP67 water- and dust-resistant rating ensures reliable operation in demanding weather conditions.

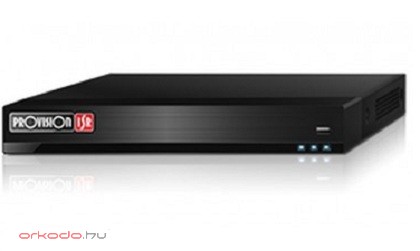

The Provision SH-4050A5N-5L(MM) is a 5 megapixel hybrid digital video recorder. It supports both analog and advanced IP cameras, delivering high image quality and intelligent features. It can handle AHD/CVI/TVI/analog cameras on 4 channels and IP cameras on 2 channels. A monitor or TV can be connected via its VGA and HDMI outputs. Recording is available on 4 AHD/CVI/TVI/analog channels and 2 IP channels, up to 5MP 2K resolution. It can play back up to 4 channels simultaneously with intelligent analytics functions. It includes 1 x SATA port (max. 6 TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network interface.
For our camera systems, customers can choose between two cabling options: DIY pack or pre-terminated cable pack.
DIY pack: Only one cable per camera needs to be routed to the central unit, carrying both power and video signal. The required connectors (video balun + power connector) are fitted by the customer at the cable ends – to help with this, we provide an installation guide available at the following link: Installation and setup guide. With basic technical skills, the camera system can be assembled at home. No crimping tool is required; only side cutters, a screwdriver and a utility knife. The pack includes 10 m of UTP cable per camera. If you need longer cables, you can indicate this in the order comments (+180 Ft/meter).
Pre-terminated cable pack: In this case, the connectors are factory-installed on the camera cable ends and cannot be removed, so you only need to connect the recorder, camera power supply and cameras – no wiring work required. The standard pack includes 10 m COX10 cable per camera. If you need longer cables, you can specify this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).
The Provision Cam2 app enables users to manage their security devices remotely. The application offers live view, playback and device configuration. AI-based video analytics features help reduce false alarms, while users can customize notifications and manage devices remotely. The app also allows you to share camera access with family members or other trusted people.
