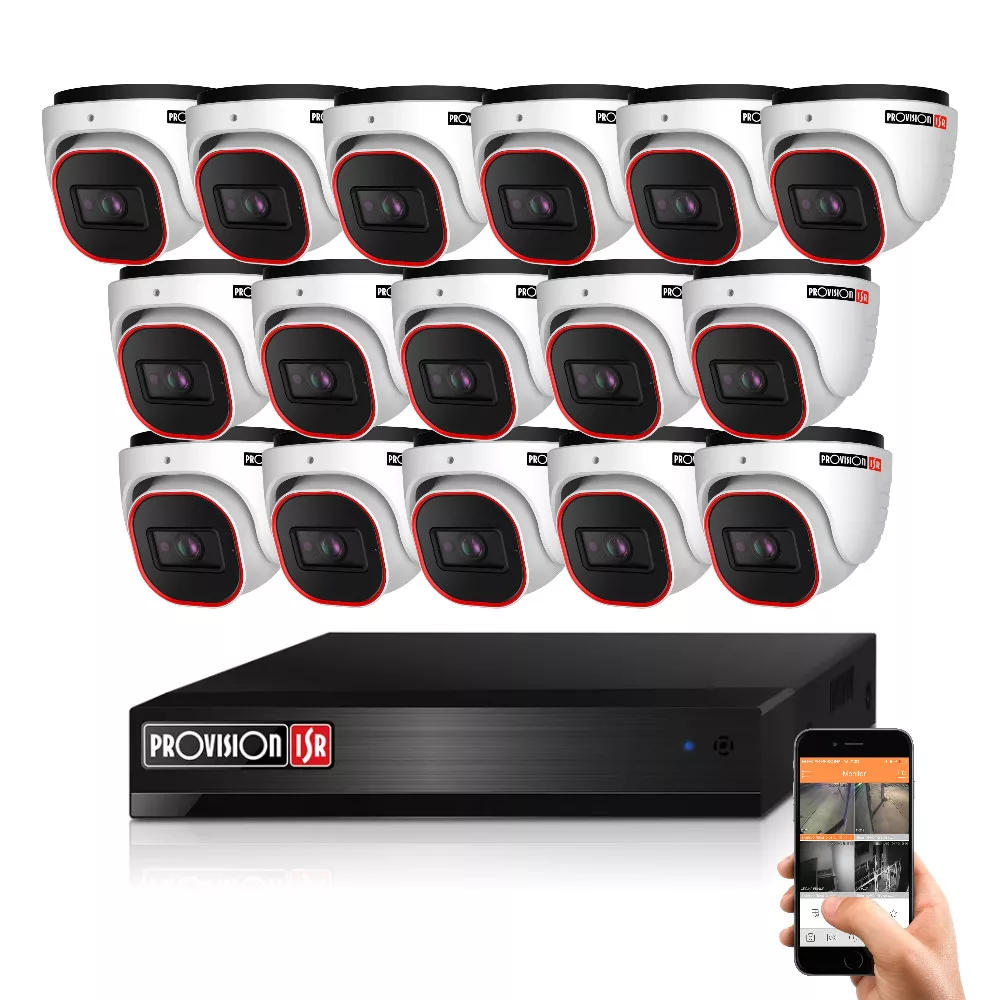

The Provision AHD-20 security camera system offers outstanding 5MP resolution and 20 m viewing distance, delivering sharp, detailed image quality day and night. The kit includes a 16-channel XVR digital recorder that supports remote video access, so you can easily check footage from your home or office cameras anytime, from anywhere. Installation is straightforward with single-cable wiring, thanks to the included installer kit containing camera power supply, video baluns, UTP cable and power connectors. The hard drive is not included but can be purchased separately in our webshop. This camera system is a strong choice for anyone looking for a reliable, easy-to-use security solution for their home or business.
Provision AHD dome camera
Connect up to 16 cameras to the DVR
Maximum viewing distance in complete darkness
Weather-resistant housing

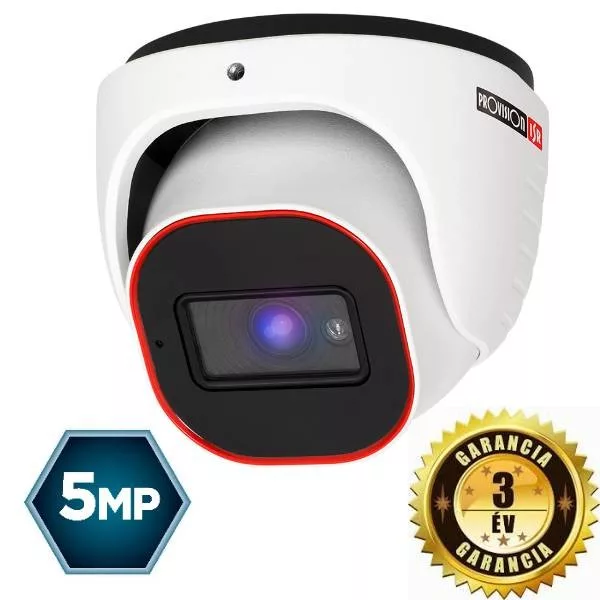

The Provision DI-350A-28 is an advanced 5 megapixel dome security camera, ideal for both outdoor and indoor use. The 5MP resolution provides sharp, clear images even in poor lighting conditions. It features a built-in 2.8 mm fixed lens offering an approximately 90° field of view. Infrared LEDs ensure up to 20 m night vision even at zero ambient light. The metal housing with IP67 water- and dust-resistant rating helps the camera operate reliably in demanding weather conditions.
The Provision SH-16200A5N-5L(MM) is a 5 megapixel hybrid digital video recorder. It supports both analog and advanced IP cameras, delivering high-quality images and intelligent features. It can handle AHD/CVI/TVI/Analog cameras on 16 channels and IP cameras on 8 channels. A monitor or TV can be connected via the VGA and HDMI outputs. Recording is available on 16 channels for AHD/CVI/TVI/Analog and 8 channels for IP cameras, with up to 5MP 2K resolution. It supports simultaneous playback on 16 channels with intelligent analytics. Interfaces include 1 x SATA port (max. 6 TB HDD, not included), 2 x USB 2.0 and a 100 Mbps RJ-45 network port.
For our camera systems, customers can choose between two wiring packages: DIY kit or pre-terminated cable kit.
DIY kit: From each camera to the central unit you only need to run a single cable that carries both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the cable ends – to help with this, we have prepared an installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 m of UTP cable per camera. If you need more cable, you can let us know in the order comments (+180 Ft/meter).
Pre-terminated cable kit: In this case, the connectors are factory-fitted to the camera cable and cannot be removed, so you only need to plug the recorder, power supply and cameras together without any wiring work. The basic package includes 10 m COX10 cable per camera. If you need longer cables, you can indicate this in the order comments (20 m COX20 and 30 m COX30 options are also available).
The Provision Cam2 app allows users to fully manage their security devices. The application offers live view, playback and device configuration. AI-based video analytics features help reduce false alarms, while users can customize notifications and manage devices remotely. The app also lets you share camera access with family members or other trusted contacts.
