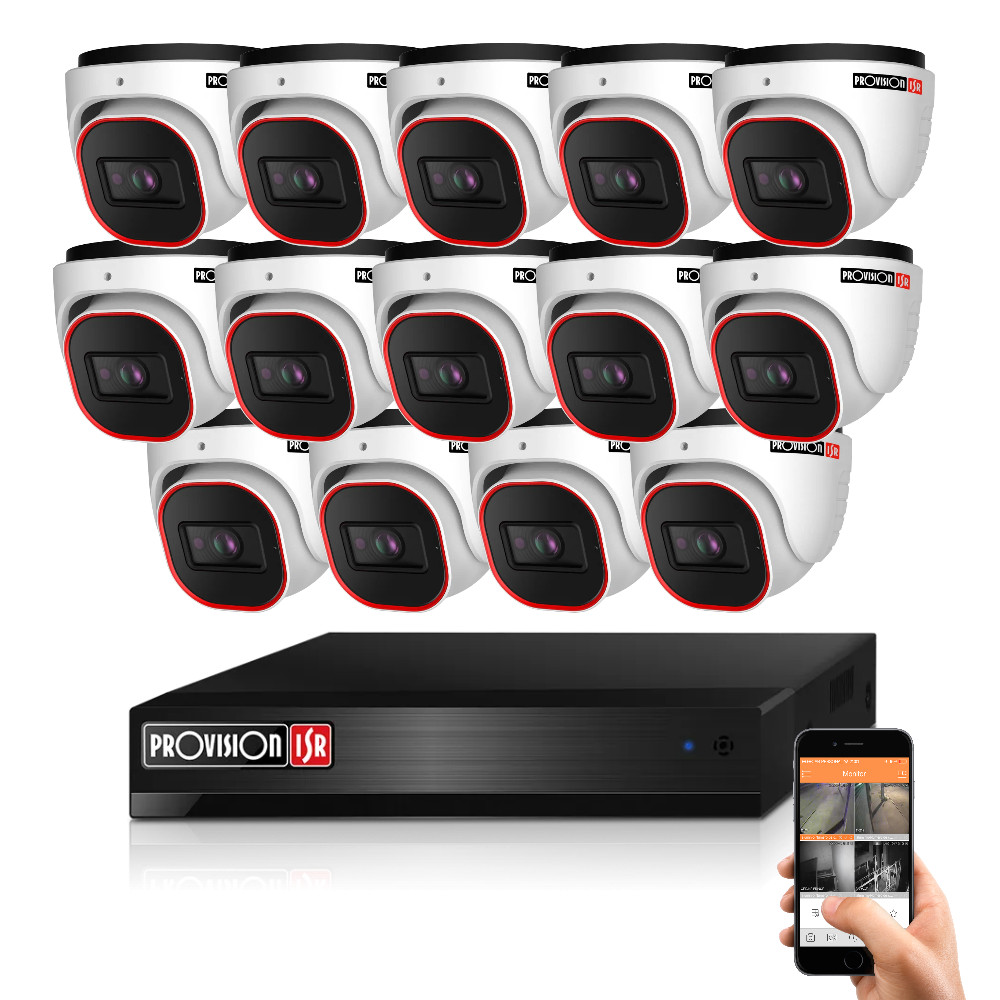

The Provision AHD-20 security camera system delivers outstanding 5MP resolution and 20 m viewing distance, ensuring sharp, detailed image quality day and night. The kit includes a 16-channel XVR digital recorder that supports remote video access, so you can easily check the footage from your home or office security cameras anytime, anywhere. Installation is very straightforward using a single cable per camera, thanks to the included installer kit containing camera power supply, video balun, UTP cable and power connector. The hard drive is not included but can be purchased separately in our webshop. This camera system is an excellent choice if you need a reliable and easy-to-use security solution for your home or business.
Provision AHD dome camera
You can connect up to 16 cameras to the DVR
Maximum viewing distance in complete darkness
Resistant to weather conditions

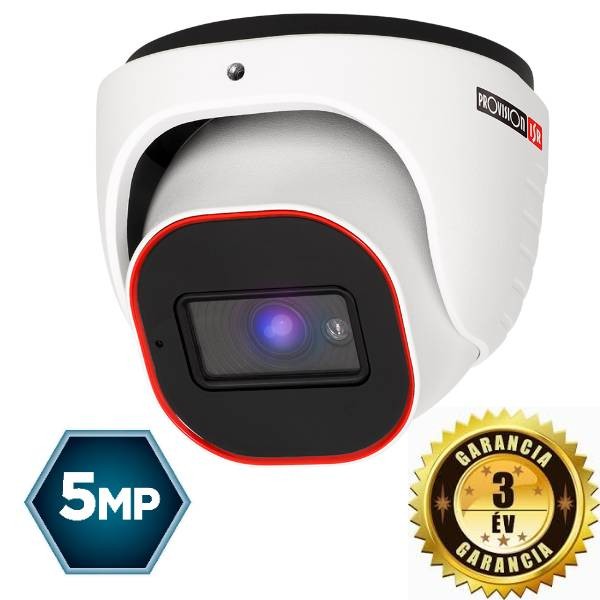

The Provision DI-350A-28 is an advanced 5 megapixel dome security camera, ideal for both outdoor and indoor use. Thanks to the 5MP resolution it delivers sharp, clear images even in poor lighting conditions. It features a built-in 2.8 mm fixed lens that offers an approximately 90° field of view. Infrared LEDs provide up to 20 m viewing distance at zero illumination for reliable night monitoring. The metal housing with IP67 water- and dust-resistant rating ensures dependable operation even in harsh weather conditions.

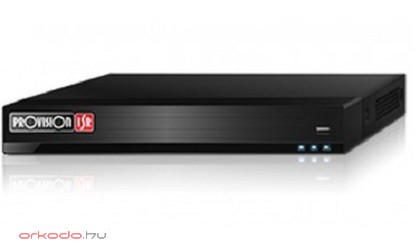

The Provision SH-16200A5N-5L(MM) is a 5 megapixel hybrid digital video recorder. It supports both analog and advanced IP cameras, delivering excellent image quality and intelligent functions. It can handle AHD/CVI/TVI/Analog cameras on 16 channels and IP cameras on 8 channels. A monitor or TV can be connected via the VGA and HDMI outputs. Recording is available on 16 channels for AHD/CVI/TVI/Analog and 8 channels for IP cameras, with up to 5 megapixel 2K resolution. It can play back up to 16 channels simultaneously and includes intelligent analytic functions. It offers 1 x SATA port (max. 6 TB HDD, not included), 2 x USB 2.0 and a 100 Mbps RJ-45 network port.
For our camera systems, customers can choose between two options: DIY cable kit or pre-assembled cable kit.

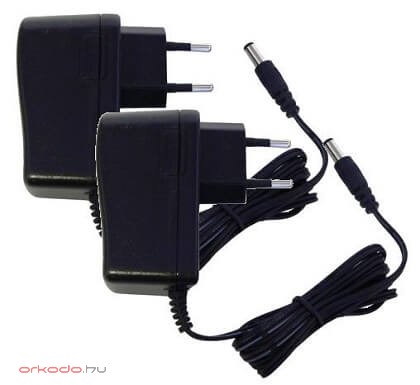

DIY cable kit: From each camera to the central unit you only need to run a single cable that carries both power and video signal. The necessary connectors (video balun + power connector) are fitted by the customer to the end of the cable – to help with this, we have prepared an installation guide available at the following link: Installation guide. With some basic technical skills, the camera system can be assembled at home. You do not need a crimping tool, only side cutters, a screwdriver and a utility knife. The kit includes 10 m of UTP cable per camera. If you need longer cables, you can let us know in the order comments (+180 Ft/meter).
Pre-assembled cable kit: In this case, the connectors are factory-fitted to the ends of the camera cables and cannot be removed, so you only need to connect the recorder, camera power supply and camera – no wiring work required. The standard kit includes 10 m COX10 cable per camera. If you need longer cables, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).
The Provision Cam2 app allows users to fully manage their security devices. The application offers live view, playback and device settings. AI-based video analytics functions help reduce false alarms, while users can customize notifications and manage devices remotely. The app also lets you share camera access with family members and other trusted contacts.
