Provision AHD-20 Dome 12 Camera System 5MP

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Használati útmutató

Details

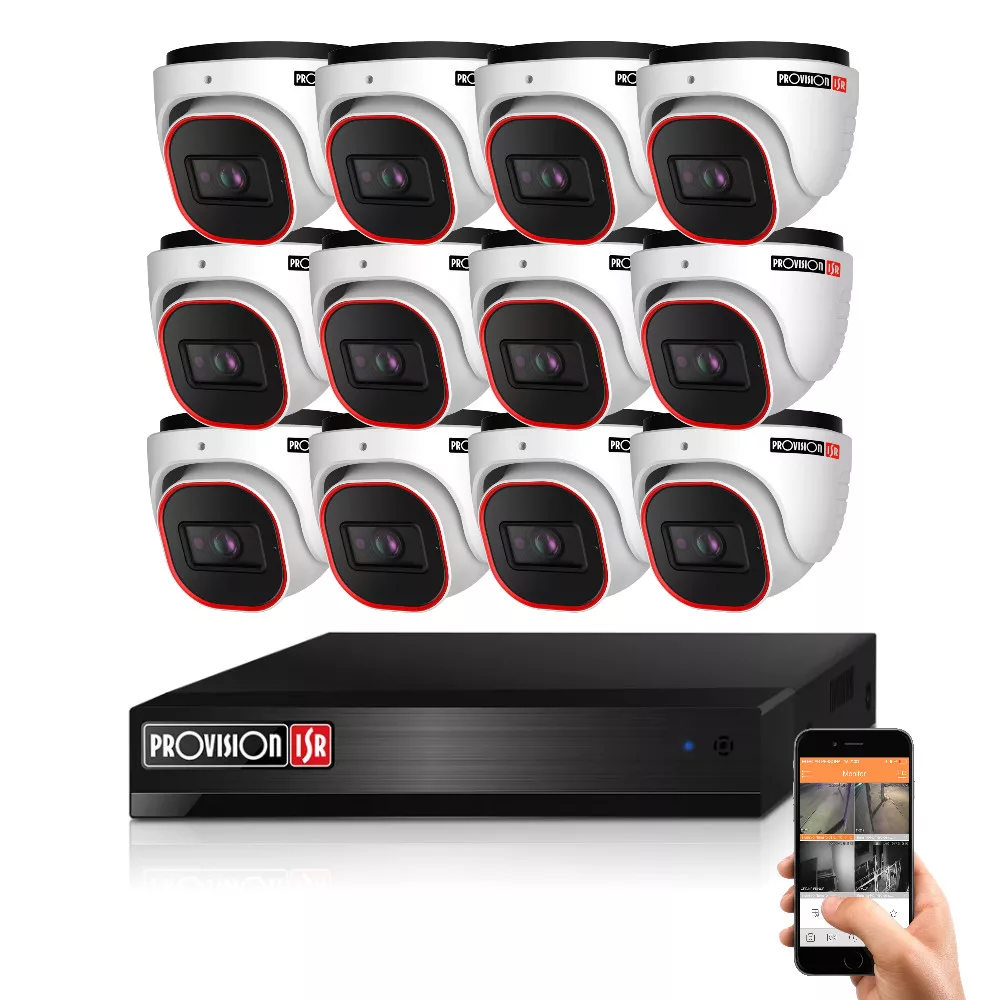

12-camera Provision 5MP 2K dome security camera system with 20 m night vision for outdoor and indoor use

The Provision AHD-20 security camera system offers outstanding 5MP resolution and 20 m viewing distance, delivering sharp, detailed image quality day and night. The kit includes a 16-channel XVR digital recorder that enables remote video access, so you can easily check recordings from your home or office cameras anytime, from anywhere. Installation is very simple with a single cable per camera, thanks to the included installation kit containing power supply, video baluns, UTP cable and power connectors. The hard drive is not included but can be purchased separately in our webshop. This camera system is an excellent choice if you need a reliable, easy-to-use security solution for your home or business.

5

MEGAPIXEL

Provision AHD dome camera

16

CHANNELS

Connect up to 16 cameras to the DVR

20 m

RANGE

Maximum viewing distance in complete darkness

IP67

RATING

Weather-resistant housing

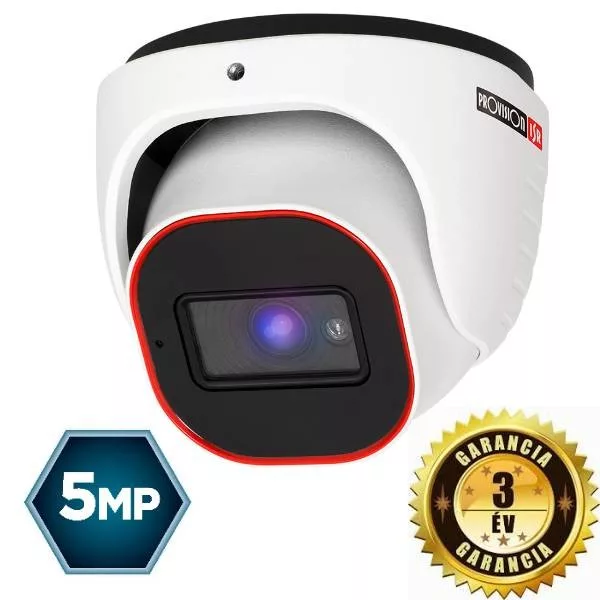

12 Provision 5MP 2K dome security cameras for efficient surveillance

The Provision DI-350A-28 is an advanced 5-megapixel dome security camera, ideal for both outdoor and indoor use. The 5 MP resolution delivers sharp, clear images even in low-light conditions. It features a built-in 2.8 mm fixed lens, offering an approximately 90° field of view. Infrared LEDs provide up to 20 m night vision even at zero ambient light. The metal housing with IP67 water- and dust-resistant rating ensures reliable operation in demanding weather conditions.

1 Provision 16-channel 5MP 2K XVR hybrid recorder with smart video analytics

The Provision SH-16200A5N-5L(MM) is a 5-megapixel hybrid digital video recorder. It supports both analog and advanced IP cameras, delivering excellent image quality and intelligent features. It can handle AHD/CVI/TVI/Analog cameras on 16 channels and IP cameras on 8 channels. A monitor or TV can be connected via the VGA and HDMI outputs. Recording is available on 16 AHD/CVI/TVI/Analog channels and 8 IP channels with up to 5 MP 2K resolution. It supports simultaneous playback on 16 channels with smart analytic functions. Interfaces include 1 x SATA port (max. 6 TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network port.

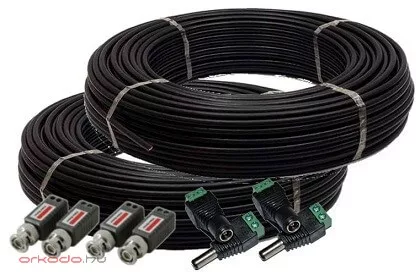

Complete installation kit for your camera system

For our camera systems, customers can choose between two installation packages: a DIY package and a pre-terminated cable package.

DIY package: From each camera to the central unit you only need to run a single cable that carries both power and video signal. The required connectors (video baluns + power connectors) are fitted by the customer to the cable ends – to help with this, we have created a step-by-step installation guide available at the following link: Installation and setup guide. With some basic technical skills the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 m of UTP cable per camera. If you need more cable, simply let us know in the order comments (+180 Ft/meter).

Pre-terminated cable package: In this case, the camera cables are supplied with factory-fitted connectors that cannot be removed, so you only need to connect the recorder, power supply and cameras – no wiring work required. The basic package includes 10 m COX10 cable per camera. If you need longer cables, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).

Remote access via Provision Cam2 mobile app

The Provision Cam2 app allows users to fully manage their security devices. The application provides live view, playback and device configuration. AI-based video analytics features help reduce false alarms, while users can customize notifications and manage devices remotely. The app also lets you share camera access with family members or other trusted contacts.

Data

Biztonsági kamerák száma:

12

Kameradesign:

Dome

Area of ​​use:

Kültér és beltér

Functions:

, , ,

Reviews

Be the first to write a review!

Write a review

Használati útmutató

Általános használati szerelési utasítás

• Szerelési Telepítési Útmutató
• Provision DVR OSSIA menüvel rendelkező

• Provision DVR/NVR jelszó visszaállítás

---

Letöltések

Provision IP tool	Letöltés
Provision kimentett felvétel lejátszó [OSSIA menüs rögzítőkhöz]	Letöltés
Provision CMS program [Apple MAC OS verzió]	Letöltés
