Provision AHD-20 Dome 11-camera security system 5MP

Key features at a glance

• 5 megapixel resolution – Provision AHD dome cameras for sharp, detailed images
• 16-channel XVR – connect up to 16 cameras to the recorder
• 20 m night vision range – clear monitoring even in complete darkness
• IP67 weather rating – suitable for demanding outdoor conditions

11 Provision 5MP 2K dome security cameras for effective monitoring

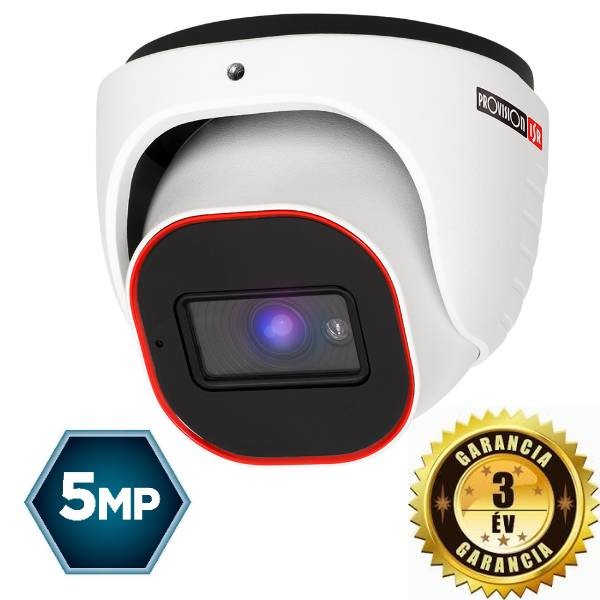

The Provision DI-350A-28 is an advanced 5 megapixel dome security camera, ideal for both indoor and outdoor use. The high resolution delivers clear, detailed images even in low-light conditions.

It features a built-in 2.8 mm fixed lens with an approximately 90° field of view, making it suitable for monitoring larger areas. The integrated IR LEDs provide up to 20 m night vision even at zero ambient light.

The robust metal housing with IP67 water and dust protection ensures reliable operation in harsh weather.

16-channel Provision 5MP 2K XVR hybrid recorder with smart video analytics

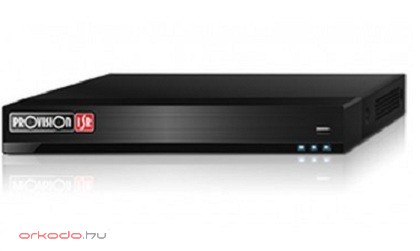

The Provision SH-16200A5N-5L(MM) is a 5 megapixel hybrid digital video recorder that supports both analogue and IP cameras.

• Supports AHD/CVI/TVI/analogue cameras on 16 channels
• Supports IP cameras on 8 channels
• Up to 5MP 2K recording resolution
• Simultaneous playback on 16 channels with intelligent analytic functions
• VGA and HDMI outputs for connecting a monitor or TV
• 1 x SATA port (up to 6 TB HDD, not included)
• 2 x USB 2.0 ports
• 100 Mbps RJ-45 network port for remote access

Installation kit options – everything you need for setup

You can choose between two installation package types: DIY cable kit or pre-assembled cable kit.

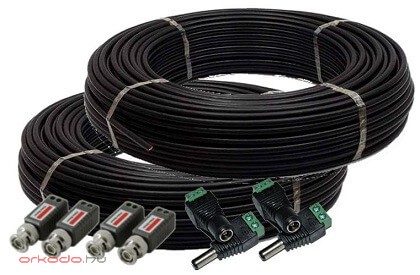

DIY cable kit

For each camera, only one cable needs to be run to the central unit, carrying both power and video signal. The required connectors (video balun + power connector) are fitted by the customer.

A detailed installation guide is available here:

• Installation & setup guide (PDF): https://orkodo.hu/shop_ordered/4402/pic/Kamera-rendszer-szerelesi-utmutato.pdf

Basic tools are sufficient (side cutter, screwdriver, utility knife); no crimping tool is needed.

The package includes 10 m of UTP cable per camera. If you need longer cables, you can request this in the order comments (surcharge per extra metre as specified in the store).

Pre-assembled cable kit

In this option, the camera cable connectors are factory-installed and non-removable. This allows you to simply connect the recorder, camera power supply, and cameras without any cable assembly.

The standard package includes 10 m COX10 cable per camera:

• 10 m COX10 pre-assembled camera cable: https://orkodo.hu/COX10-RG59-DC-video-es-tap-kombinalt-kabel-10-Meter

If you require longer lengths, you can indicate this in the order comments. Available sizes include:

• 20 m COX20: https://orkodo.hu/COX20-RG59-DC-video-es-tapkabel-20-Meter
• 30 m COX30: https://orkodo.hu/COX30-RG59-DC-video-es-tapkabel-30-Meter

Remote access via Provision Cam2 mobile app

The Provision Cam2 app allows full remote control of your security system.

• Live view and playback from your cameras
• Remote device configuration
• AI-based video analytics to help reduce false alerts
• Customisable notifications
• Option to share camera views with family members or other authorised users

More information and download: https://provision-isr.com/cam2-app/
