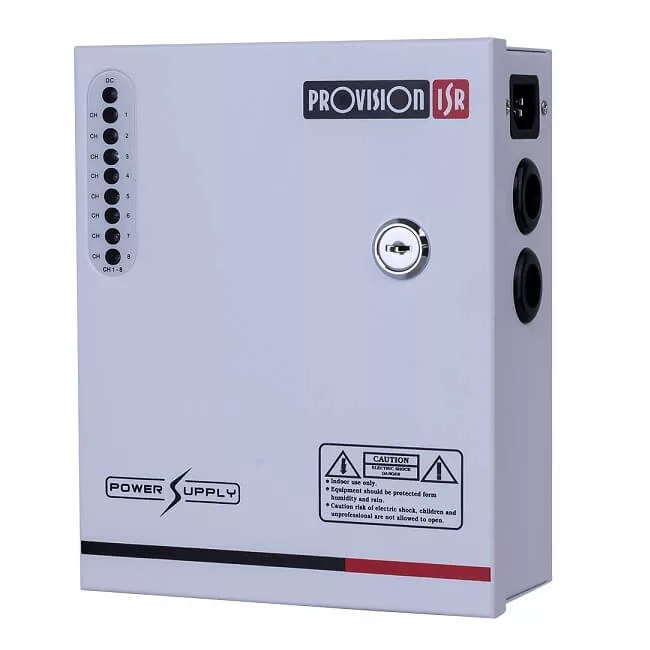

Provision PR-5A8CH-B adjustable camera power supply with 8 outputs

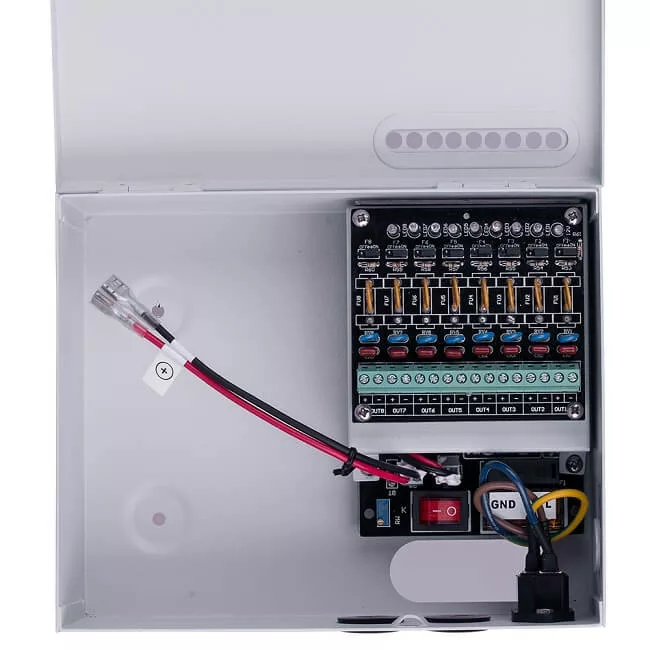

The Provision PR-5A8CH-B power supply offers 8 separate outputs, allowing it to power multiple cameras at the same time. Wiring is simple thanks to the terminal block connections. For complete safety it features overvoltage, short-circuit and overcurrent protection, with self-resetting fuses on each output. The output voltage is adjustable between 12–15VDC with a maximum load of 5A. It comes in a robust metal enclosure that can be locked with the supplied keys. Its biggest advantage is that it can be used as a UPS, as it accommodates a 12V/7Ah backup battery.

Technical data:
Number of outputs: 8
Input voltage: AC100~240V
Frequency: 47~63Hz
Output voltage: DC12V
Output current: 5A
Adjustable output voltage: DC12~15V
Overcurrent protection: 6A ±5%
Efficiency: ≥ 85%
Backup battery support: Yes
Enclosure: Metal
Dimensions: 205 x 165 x 75 mm
