Adjustable camera power supply 12-14VDC 12A 16 outputs PR-12A16CH

• Details
• Reviews

Details

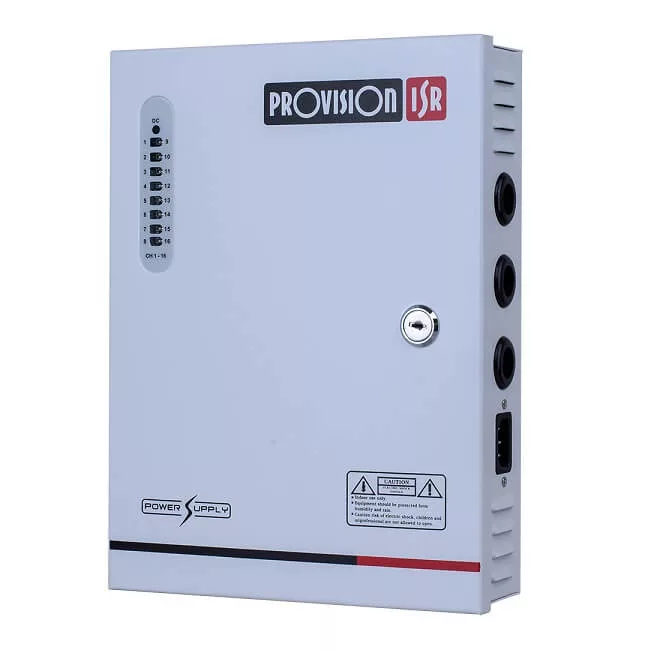

Provision PR-12A16CH adjustable camera power supply with 16 outputs

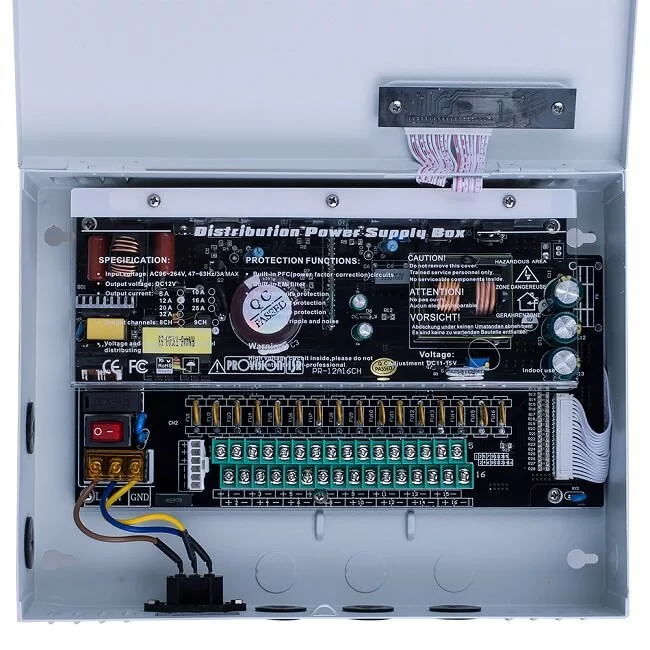

The Provision PR-12A16CH power supply offers 16 separate outputs, allowing you to power multiple cameras at the same time. Wiring is simple thanks to the screw terminal connection. For safety, the unit features overvoltage, short-circuit and overcurrent protection, with self-resetting fuses on each output. The output voltage is adjustable between 11–15VDC, with a maximum load of 12A. It comes in a robust metal enclosure that can be locked with the included keys.

Technical data:
Number of outputs: 16
Input voltage: AC100~240V
Frequency: 47~63Hz
Output voltage: DC12V
Output current: 12A
Adjustable output voltage: DC11~15V
Overcurrent protection: 6A ±5%
Efficiency: ≥ 85%
Backup battery support: No
Enclosure: Metal
Dimensions: 290 x 220 x 70 mm
