Adjustable camera power supply 12-14V DC 10A 9 outputs PR-10A9CH

• Details
• Reviews

Details

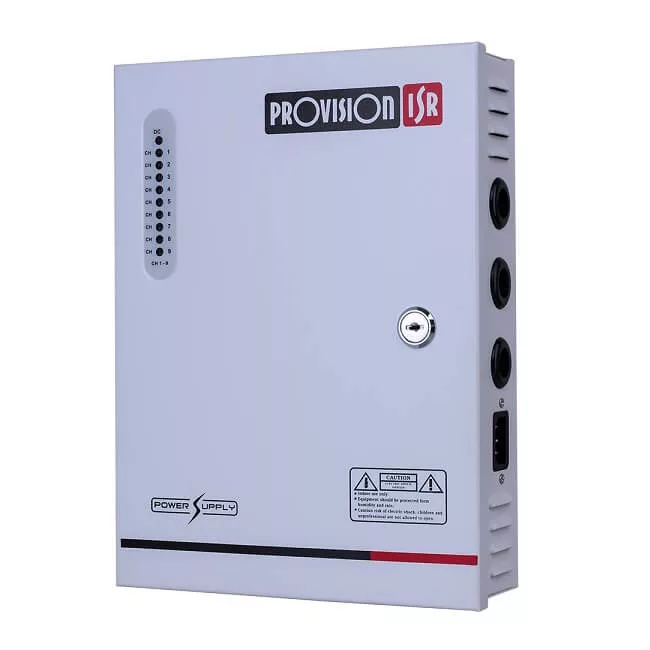

Provision PR-10A9CH adjustable camera power supply with 9 outputs

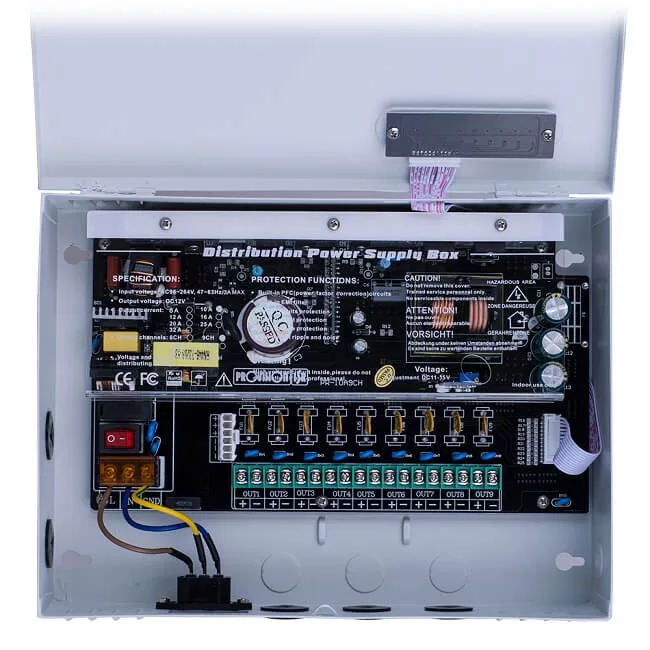

The Provision PR-10A9CH power supply features 9 separate outputs, allowing it to power multiple cameras at the same time. Wiring is simple thanks to the screw terminal connections. The power supply includes overvoltage, short-circuit and overcurrent protection for enhanced safety, with self-resetting fuses on each output. The output voltage is adjustable between 11–15V DC with a maximum load of 10A. It comes in a robust metal enclosure that can be locked with the supplied keys.

Technical specifications:
Number of outputs: 9
Input voltage: AC 100–240V
Frequency: 47–63 Hz
Output voltage: DC 12V
Output current: 10A
Adjustable output voltage range: DC 11–15V
Overcurrent protection: 6A ±5%
Efficiency: ≥ 85%
Backup battery support: No
Enclosure: Metal
Dimensions: 290 × 220 × 70 mm
