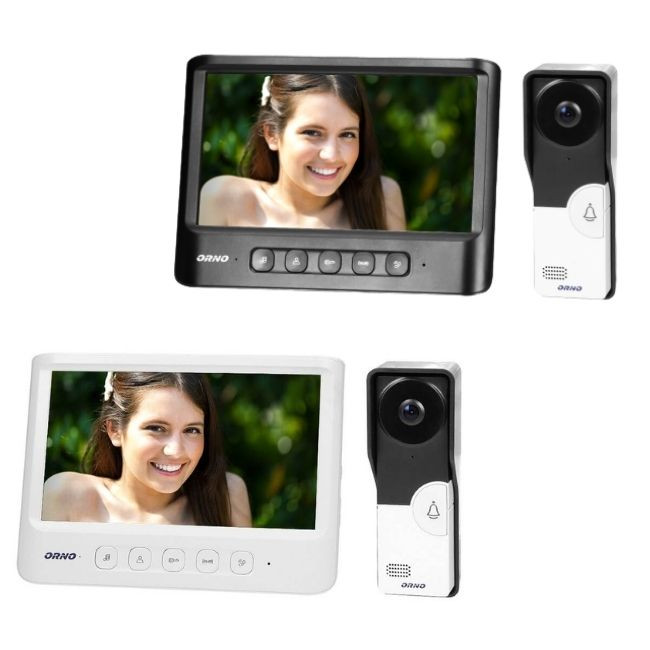

Video door phone OR-VID-MC-1059 Modern video intercom available in two colours (white and black), ultra-slim 7" LCD monitor, easy adjustment of image and sound parameters (brightness, contrast and call volume), 16 selectable ringtones, CMOS camera, surface-mounted outdoor unit with integrated rain cover, infrared illumination for night vision, additional gate control, DC power supply from mains to 12 V DC socket, and direct powering of an electric strike – up to 500 mA current draw – without an additional power supply.
General informationType: single-familyTransmission type: wiredPower supply type: power adapterConnection system: 4-wireNumber of wires: 4 + 2Electric strike power supply: from video door phone powerAutomatic gate control: yesExpandable with an additional outdoor panel: noExpandable with an additional monitor: yesExpandable with an additional video uniphone: noExpandable with an additional CCTV camera: no

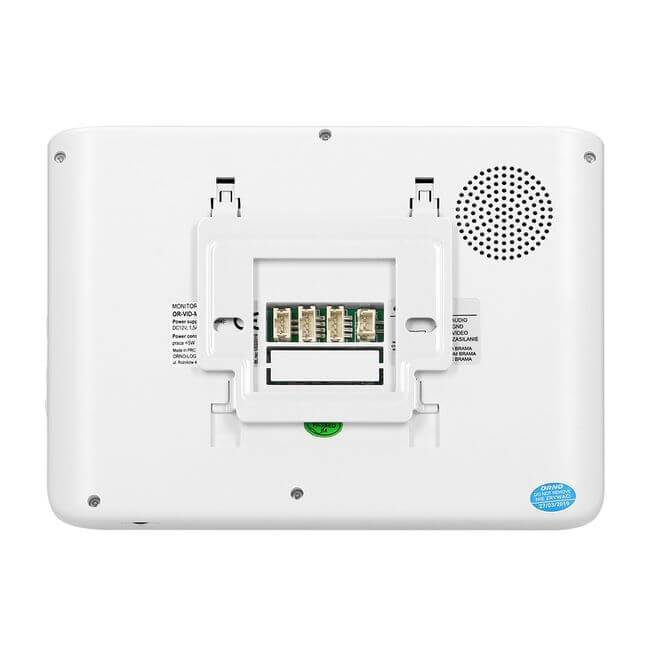

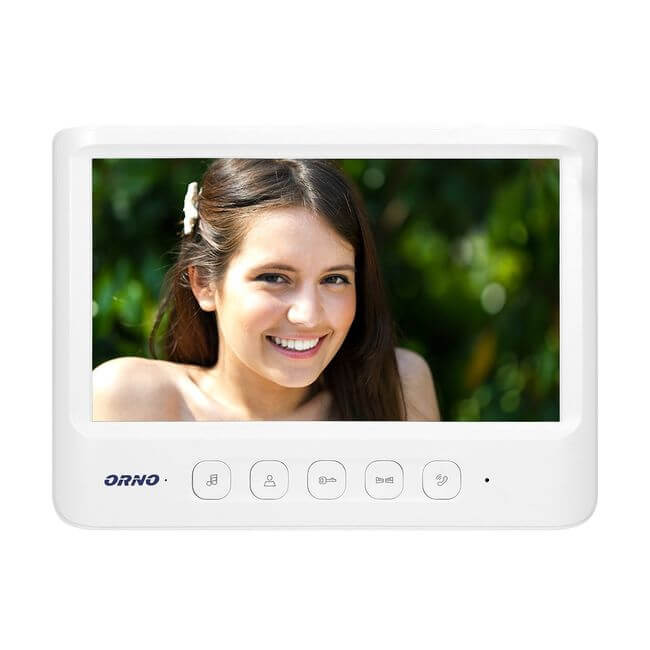

MonitorOperation: hands-freeDisplay: 7" LCDMonitor screen resolution: 480 × 800Colour: whiteMemory: noSD card reader: noIntercom function: noNumber of ringtones: 16Touchscreen: noMonitor dimensions (W × H × D [mm]): 182 × 133 × 19.5

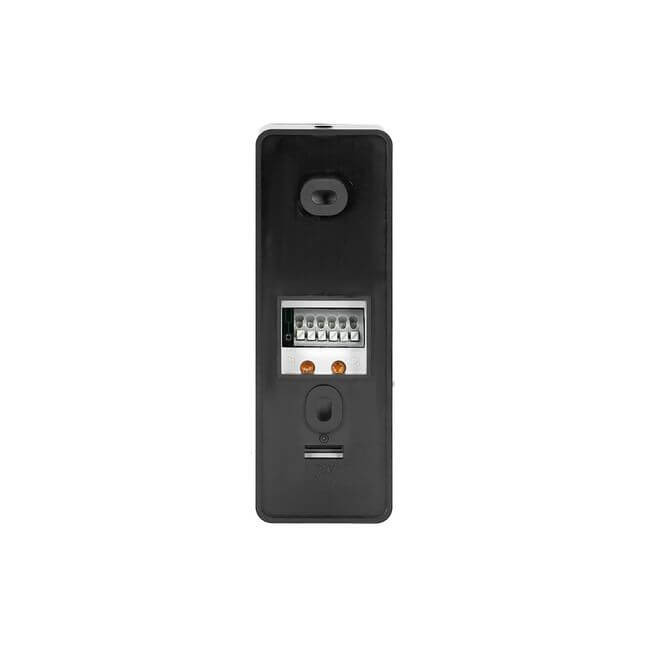

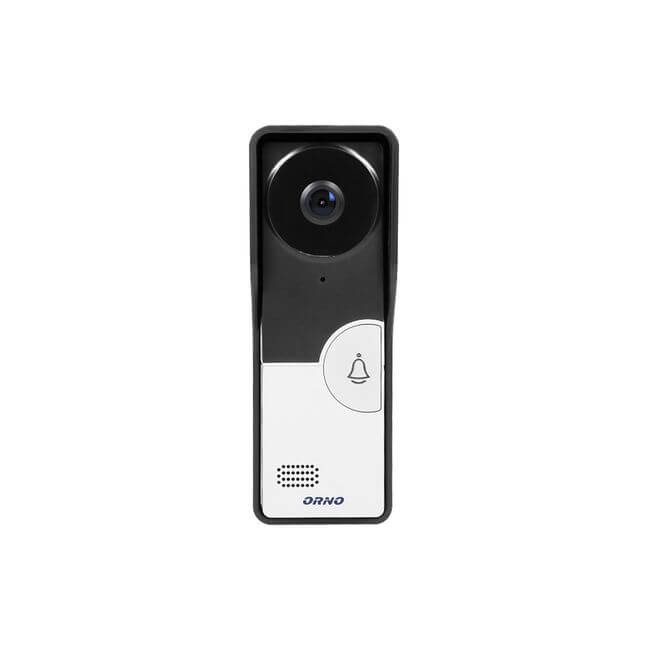

Outdoor panel with cameraCamera type: standard lensVertical / horizontal field of view: 66° / 86°Camera resolution: 600 TVLInstallation: surface mountingCard and proximity tag reader: noKeypad: noNight illumination: infraredOutdoor panel dimensions (W × H × D [mm]): 44.5 × 124.5 × 42

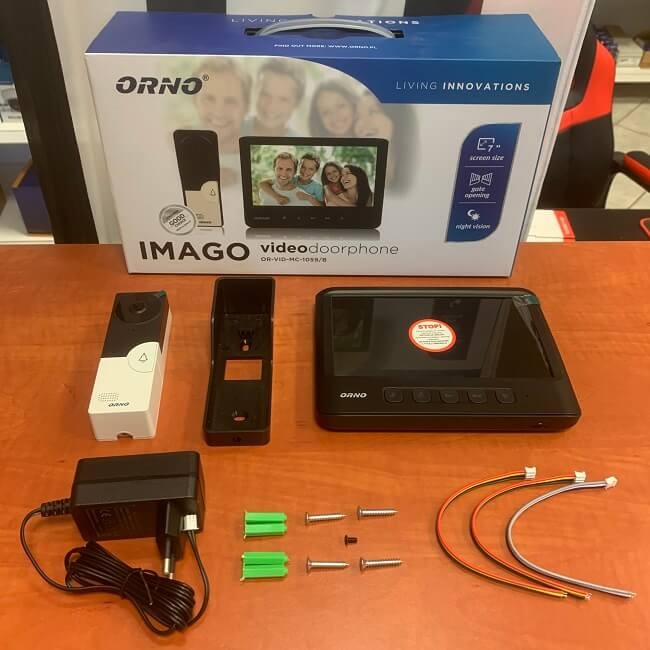

Package contents
Browse our video door phone category and choose from our full range of products.
Az alábbi linken található a termékhez tartozó leírás:
https://orkodo.hu/shop_ordered/4402/pic/OR-VID-MC-1059_manual_A5_HU.pdf
