Uniview NVR301-04LS3-P4 IP recorder 4 channels built-in PoE 8MP

Name: Uniview NVR301-04LS3-P4 IP recorder 4 channels built-in PoE 8MP
Brand: Uniview
SKU: NVR301-04LS3-P4
Price: 130.87 EUR
Availability: InStock

In stock 9 pcs

130.87 €

4,8 / 5 4 736 vásárlói értékelés

Garancia24 hónap

Szállítás1–2 munkanap

Műszaki segítségorkodo@orkodo.comMunkaidőben: 06 20 379 2733

Details

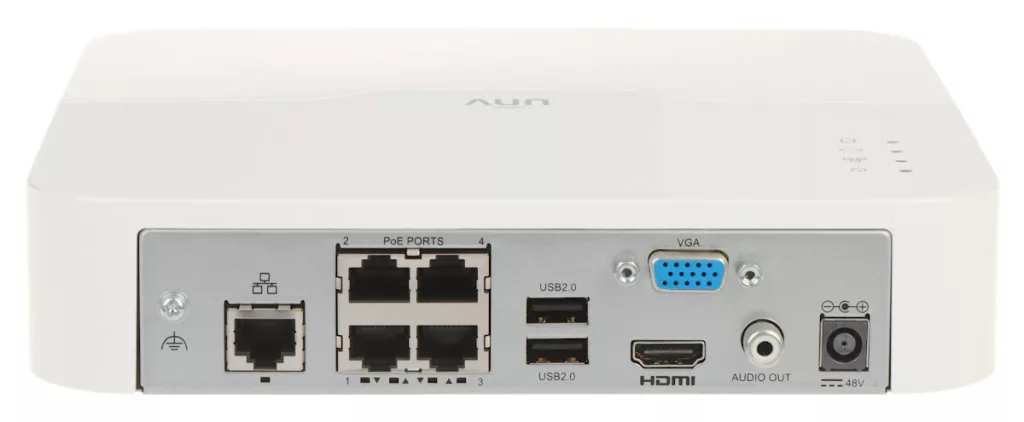

Uniview NVR301-04LS3-P4 IP NVR recorder with 4 channels, built-in PoE and up to 8 megapixel (4K) resolution

The Uniview NVR301-04LS3-P4 is a 4-channel IP NVR that supports IP cameras up to 8MP resolution. It features 4 built-in PoE ports, so there is no need for a separate PoE switch – cameras receive power directly from the NVR. It supports H.265+ video compression, which can reduce storage requirements by up to 75% compared to older H.264 recorders. It supports hard drives (HDD) up to 10 TB. With its 4K HDMI output, it can be connected to the latest TVs and monitors. The NVR supports and manages face recognition, smart motion detection (UMD) and intrusion detection cameras. Using the mobile app, you can view the images of the connected IP cameras remotely from your phone. The menu and mobile application are available in Hungarian.

8

MEGAPIXEL

Maximum resolution

10 TB

MAX STORAGE

Maximum storage capacity

4

PoE CHANNELS

Connect up to 4 cameras

H.265+

VIDEO COMPRESSION

Up to 75% more efficient than older systems

Detailed technical specifications

VIDEO SYSTEM	IP
MEGAPIXEL	8 MP
VIDEO STANDARDS	IP
IP CHANNELS	4
COMPRESSION	Ultra 265, H.265, H.264
UPLINK BANDWIDTH FROM CAMERAS	64 Mbit/s
OUTPUT BANDWIDTH TO CLIENTS	48 Mbit/s
MAX CAMERA RESOLUTION	IP: 8 MP
IP RECORDING PER CHANNEL	25–30 fps
HDMI	1 pc
HDMI AND VGA	Same content
HDMI1	4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA1	1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
BUILT-IN HDD SLOTS	1 pc

HDD TYPE	3.5" SATA HDD (max. 10 TB / HDD)
MAX HDD SIZE	10 TB
MAX STORAGE CAPACITY	10 TB
USB PORTS	2 × USB 2.0
ON-SCREEN MENU	Hungarian language menu
SUPPORTED VIDEO ANALYTICS (IPC)	Face recognition, Smart motion detection (UMD), Line crossing, Area protection
LOCAL PLAYBACK CHANNELS	4 channels
OPERATING TEMPERATURE	-10 °C to 55 °C
DIMENSIONS	205 mm × 205 mm × 46 mm
