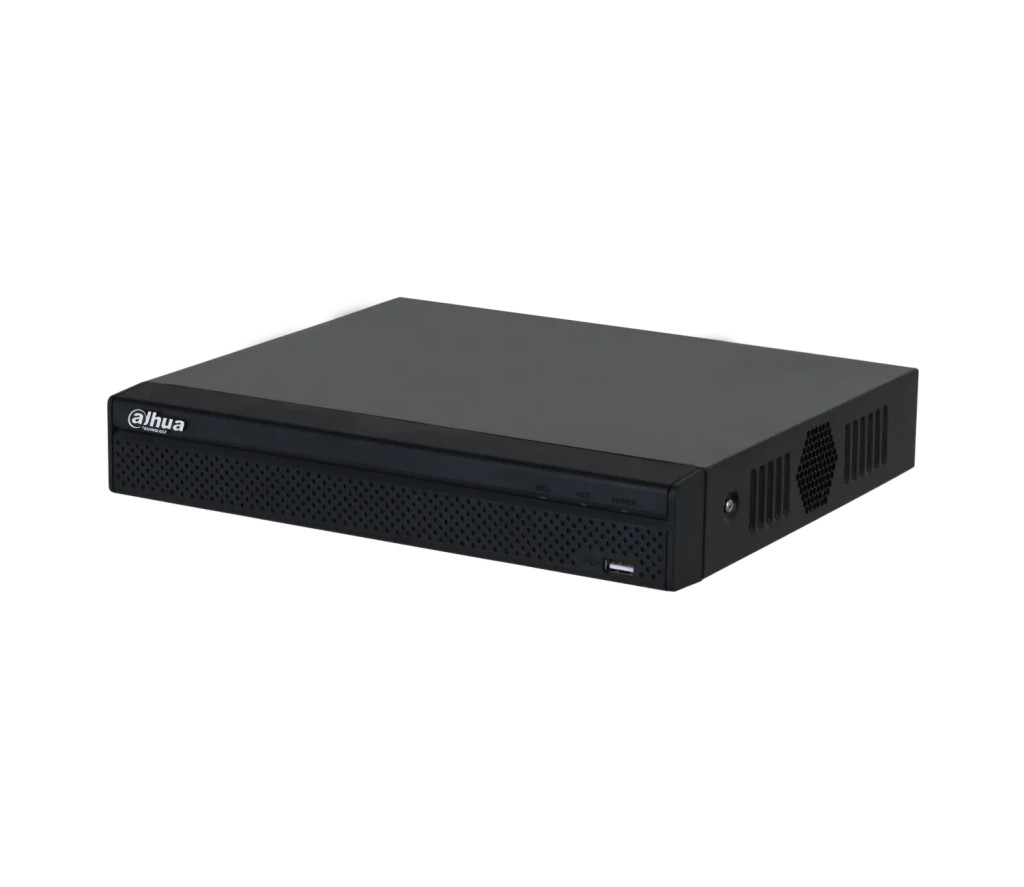

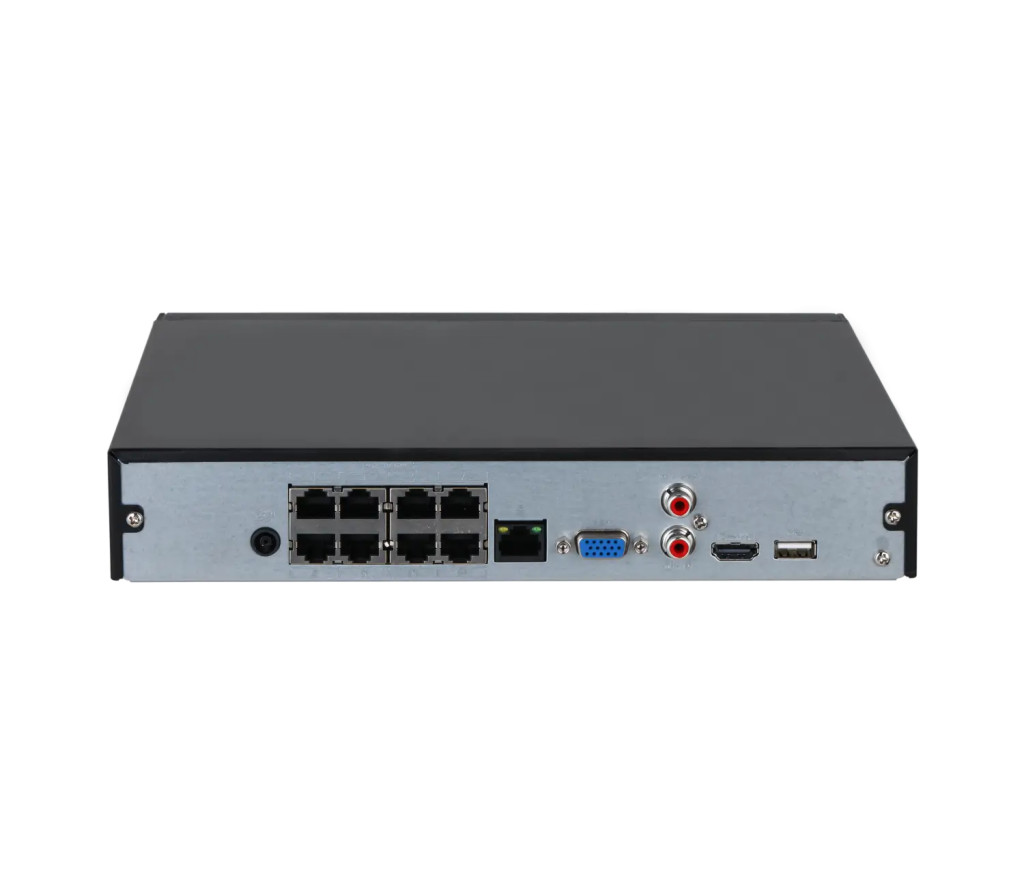

Dahua NVR2108HS-8P-4KS3 8-channel IP NVR recorder with 8 PoE inputs

The Dahua NVR2108HS-8P-4KS3 is an 8-channel IP NVR that supports IP cameras up to 12MP resolution. This NVR features 8 PoE ports, allowing you to connect and power your security cameras directly from the recorder without any extra steps or a separate switch, significantly simplifying installation. It supports Smart H.265+ video compression, reducing storage requirements by up to 75% compared to older H.264-based recorders. The HDMI output delivers outstanding 4K resolution, making it compatible with the latest TVs and monitors. It supports hard drives (HDD) up to 16 TB. The NVR works with Dahua intelligent cameras, enabling object classification (human and vehicle detection), smart motion detection (drastically reducing false alarms), and AI search (filtering recordings by selected objects and events). With the DMSS app, you can remotely view the live feed of the connected IP cameras from your phone. The device offers a Hungarian-language menu and mobile application.

12

MEGAPIXEL

Maximum resolution

16 TB

MAX STORAGE

Maximum storage capacity

8

CHANNELS

Connect up to 8 cameras

H.265+

VIDEO COMPRESSION

Up to 75% more efficient than older systems

Detailed technical specifications

VIDEO SYSTEM	IP
MEGAPIXELS	12 MP
VIDEO STANDARDS	IP
IP CHANNELS	8
COMPRESSION	Smart H.265; H.265; Smart H.264; H.264
UPSTREAM BANDWIDTH FROM CAMERAS	80 Mbit/s
DOWNSTREAM BANDWIDTH TO CLIENTS	60 Mbit/s
MAX CAMERA RESOLUTION	IP: 12 MP
IP RECORDING PER CHANNEL	30 fps
HDMI	1 pc
HDMI AND VGA	Same content
HDMI1	4K (3840 × 2160)
VGA1	Full HD (1920 × 1080)
SUPPORTED HDD	1 pc
HDD TYPE	3.5" SATA HDD (max: 16 TB / HDD)
MAX HDD SIZE	16 TB
MAX STORAGE CAPACITY	16 TB

USB PORTS	2 × USB 2.0
LAN	1 × 10/100 Mb Ethernet
ON-SCREEN MENU	Hungarian OSD menu
PC SOFTWARE	Internet Explorer, DSS Express, DSS Pro, Smart PSS
MOBILE CLIENT	iPhone, Android: DMSS, iDMSS, gDMSS
VIDEO ANALYTICS	Object classification
LIVE VIEW ON PRIMARY MONITOR	8 channels
LIVE VIEW VIA WEB INTERFACE	8 channels
PLAYBACK ON LOCAL INTERFACE	8 channels
PLAYBACK VIA WEB INTERFACE	8 channels
CLOUD ACCESS	P2P
ACCESSORIES	Mouse, power adapter
OPERATING TEMPERATURE	-10 °C to 55 °C
POWER SUPPLY	12 V DC
POWER CONSUMPTION WITHOUT HDD	10 W (PoE total output 72 W, max. 25.5 W per port)
DIMENSIONS	260 mm × 232.7 mm × 47.6 mm
