Imou WiFi camera system with 1TB hard drive 2MP NVR1104/F22

Pre-configured 4-camera Imou WiFi IP surveillance system with free 1TB hard drive

This WiFi kit is suitable for continuous monitoring of family homes, shops and warehouses. It is a great solution where cabling is difficult or not possible, as long as power is available at the camera locations. The wireless range between the cameras and the NVR is up to approx. 150 m in open space, which can be reduced by obstacles such as walls.

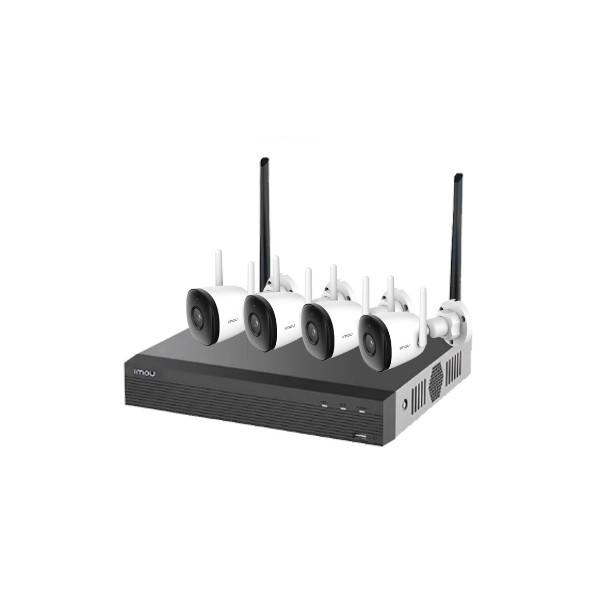

What the Imou WiFi camera system includes:

4 pcs 2MP bullet cameras

The cameras feature weatherproof housing with IP67 rating, making them suitable for outdoor installation. You get a wide 114.6° field of view and up to 30 m night vision in complete darkness. The external antenna ensures stable video streaming even over longer distances. In addition to video, the cameras also support audio recording thanks to the built-in microphone.

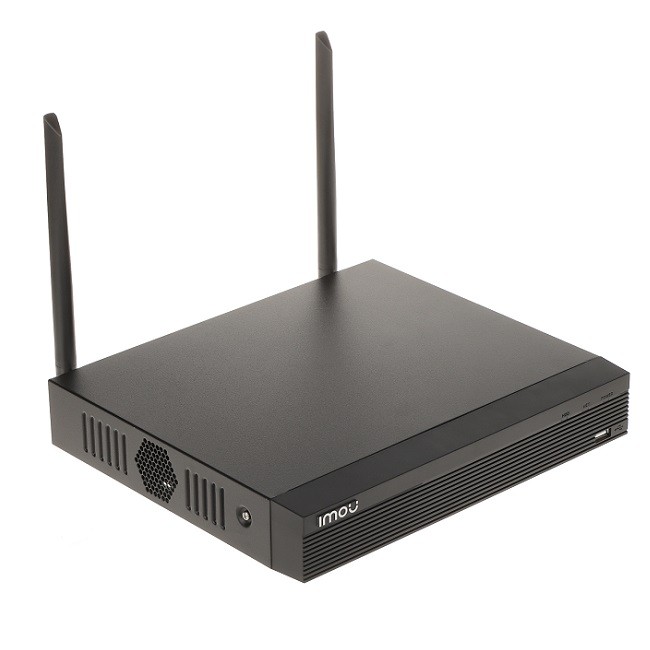

1 pc Imou wireless NVR recorder

Supports recording and displaying up to 4 camera channels in full 2MP resolution. It can be connected directly to a TV or monitor via HDMI or VGA output. With an easy-to-use smartphone app, you can view live footage over the internet from virtually anywhere. Recording is done to a hard drive, and built-in motion detection helps reduce unnecessary recordings.

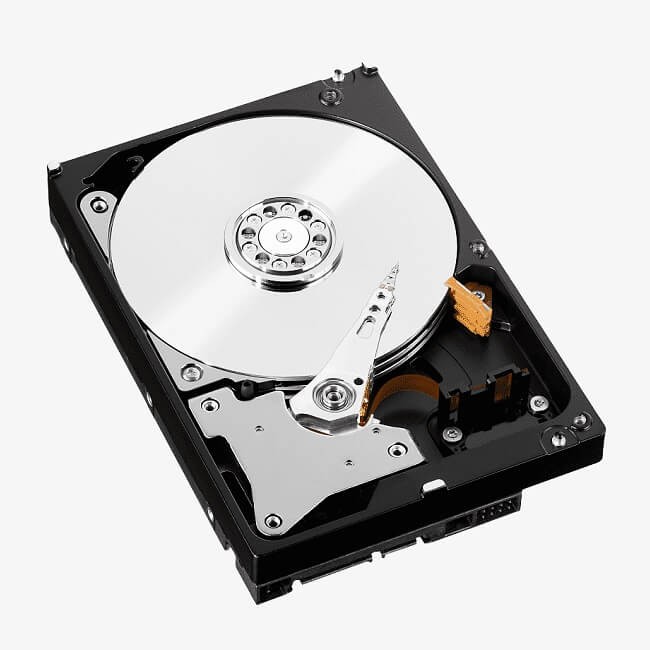

1 pc 1000GB hard drive

The included 1TB HDD is pre-installed in the NVR, and all recordings are saved there. Recorded events can be played back directly from the NVR or via the mobile app. Storage time depends on the amount of motion events; oldest recordings are overwritten automatically, so you do not need to worry about the disk becoming full.

Technical specifications:

Image sensor: 1/2.7" 2MP progressive CMOS
Resolution: 2MP (1920 x 1080)
Night vision: up to 30 m
Field of view: 114.6° (H), 62.3° (V), 135° (D)
Video compression: H.265 / H.264
Frame rate: up to 25/30 fps
Microphone: built-in
Ethernet: 1 x 100 Mbps Ethernet port
Wi-Fi: IEEE802.11b/g/n, up to 50 m in open space
MicroSD card support: up to 128 GB
Reset button
Camera power supply: DC 12V 1A
Power consumption: <4.8W
Camera dimensions: 84.6 x 70.0 x 164.6 mm (3.3 x 2.8 x 6.5 in)
Video & audio input: 4-channel access
Recording bandwidth: 40 Mbps (wired), 16 Mbps (Wi-Fi)
Video output: VGA, HDMI (up to 1080p)
OSD: camera name, time, motion detection, recording
Recording modes: Manual, Scheduled (Normal, MD, Alarm), Motion detection
Synchronous playback on all channels
Backup options: USB device / network
Ethernet: 1 x RJ-45 (10/100 Mbps)
Wi-Fi: IEEE802.11b/g/n (2.4 GHz)
SATA 2.0 port, supports up to 8 TB
NVR power supply: DC 12V 1.5A
NVR power consumption: <10W (without HDD)
NVR dimensions: 260 x 248 x 48 mm
