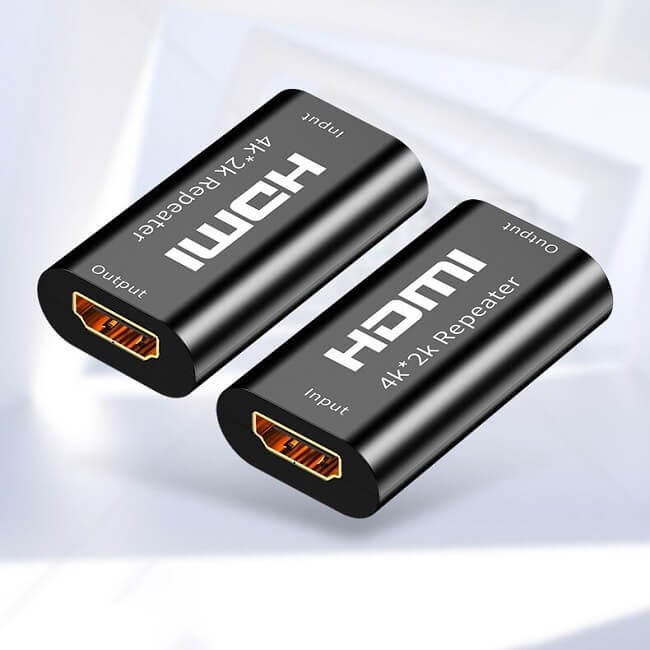

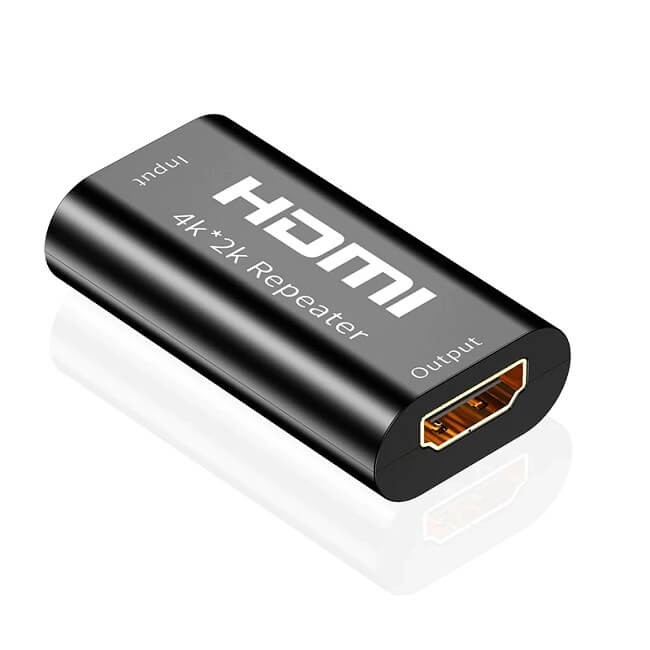

HDREP-4K HDMI Repeater amplifier 4K
The HDMI Repeater extends the length of any HDMI cable without signal loss.

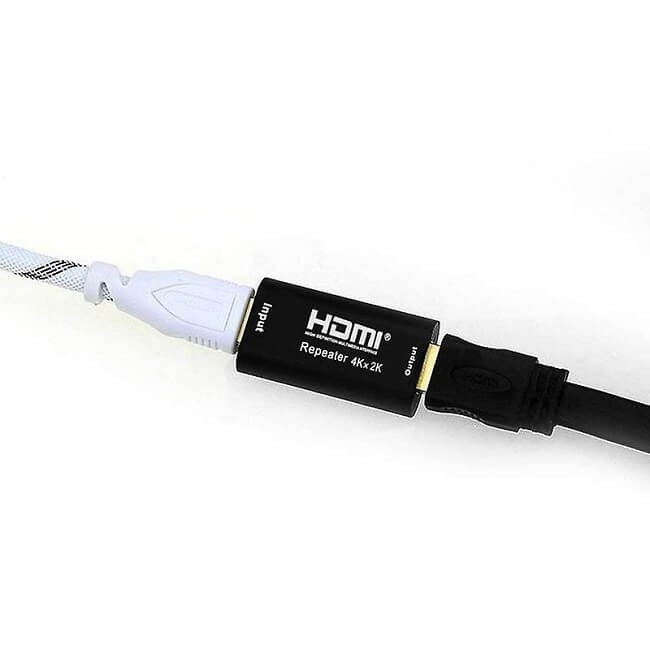

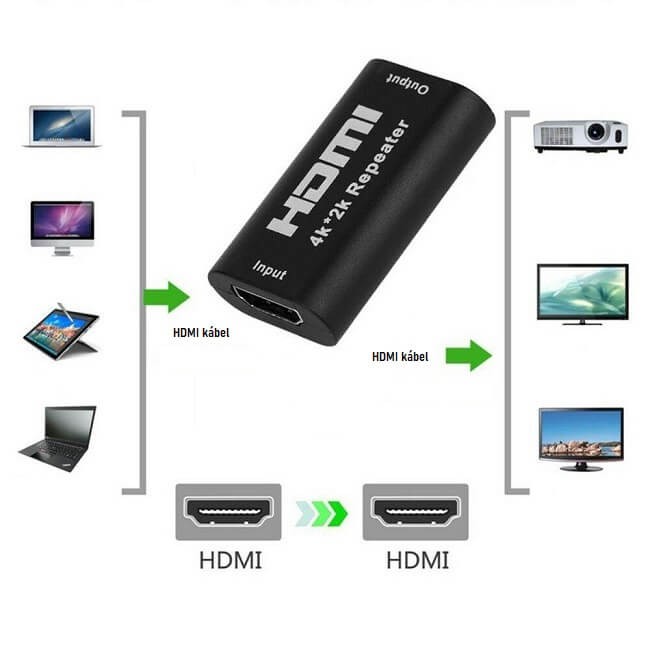

It is very easy to use: connect the HDMI cable from your source device (e.g. set-top box, DVD player, etc.) to the Repeater input, then connect another HDMI cable to the output and plug it into your display (e.g. TV, monitor).
For 1080p resolution the input cable length is recommended up to 15 m and the output cable length up to 25 m. For 4K resolution the input is recommended up to 5 m and the output up to 8 m. Actual distance may vary depending on cable quality and length.
4K resolution is supported at 30 Hz only.
The HDMI Repeater does not require an external power supply.
Technical data: • Supported resolutions: 4K x 2K, 1080p and 3D • Bandwidth: 10.2 Gbps • Input: 1x HDMI female • Output: 1x HDMI female • HDMI version: HDMI 1.4 compatible • HDCP: HDCP 1.1 compatible • Operating frequency: 165 MHz • HDMI data rate: 1.65 Gbps • Recommended cable: 26 AWG • Supported input/output resolutions: 480i@60Hz, 480i@50Hz, 480p@60Hz, 576p@50Hz, 720p@60Hz, 720p@50Hz, 1080i@60Hz, 1080i@50Hz, 1080p@60Hz, 1080p@50Hz, 1080p@30Hz, 1080p@25Hz, 1080p@24Hz.
