Dahua 8-camera 5MP security camera system kit with 80 m night vision

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Használati útmutató

Details

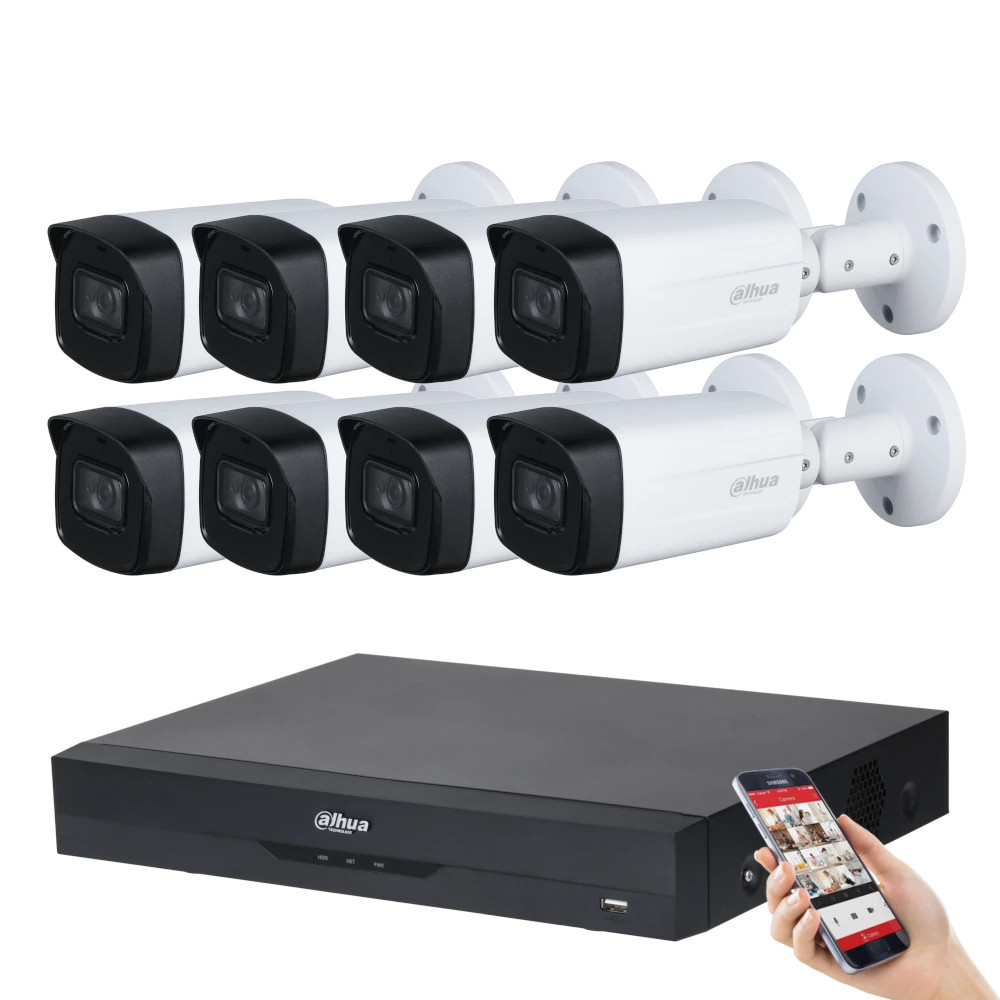

8-camera Dahua security system, 5MP 2K resolution with 80 m night vision range

Our Dahua 5 megapixel security camera system kit is an effective solution for outdoor and indoor surveillance of family homes, offices, apartments and business premises. The package includes eight 5 megapixel, 2K resolution security cameras that deliver excellent image quality even in complete darkness up to 80 metres, thanks to the built-in Starlight IR LEDs. The camera system also includes an 8-channel HDCVI 5 MP XVR digital recorder with remote access, so you can view and manage the system via your phone. The recorder interface is available in Hungarian as well. With the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate, making it an ideal choice for anyone looking for a reliable security solution.

The storage drive required for recording is not included; choosing the right capacity is up to you. You can select a suitable hard drive from this link. If you purchase it from us, we will professionally install it in your selected camera system.

5

MEGAPIXEL

Dahua HDCVI camera

8

CHANNELS

Connect up to 8 cameras to the DVR

80 m

RANGE

Maximum viewing distance in complete darkness

IP67

RATING

Weather-resistant housing

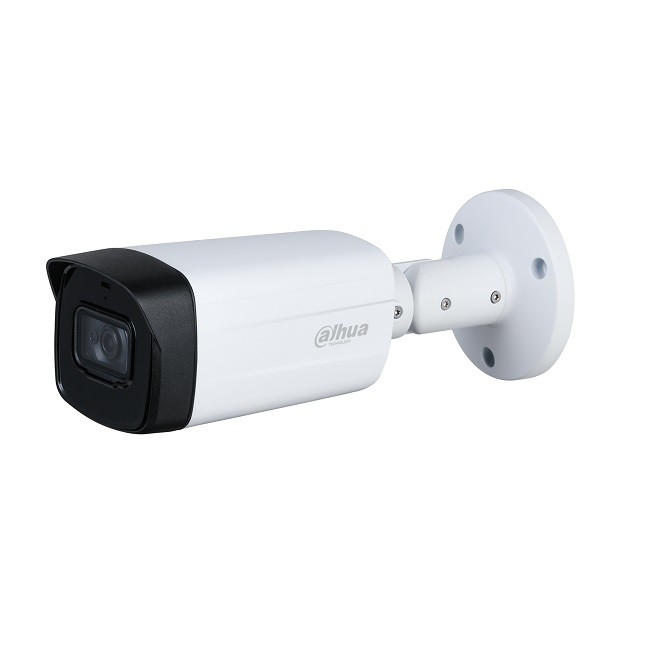

8 pcs Dahua HDCVI 5MP 2K security cameras with high-performance night vision

The Dahua HAC-HFW1500TH-I8 5MP security camera offers up to 80 metres night vision range with its built-in Starlight LEDs, so you can see clearly even without external lighting. The 3.6 mm lens provides an approx. 90° field of view, allowing you to monitor a wider area. The modern bullet design of the Dahua security camera makes it suitable for mounting on ceilings or walls. The plastic camera housing has an IP67 water- and dust-resistant rating, so it withstands changing weather conditions.

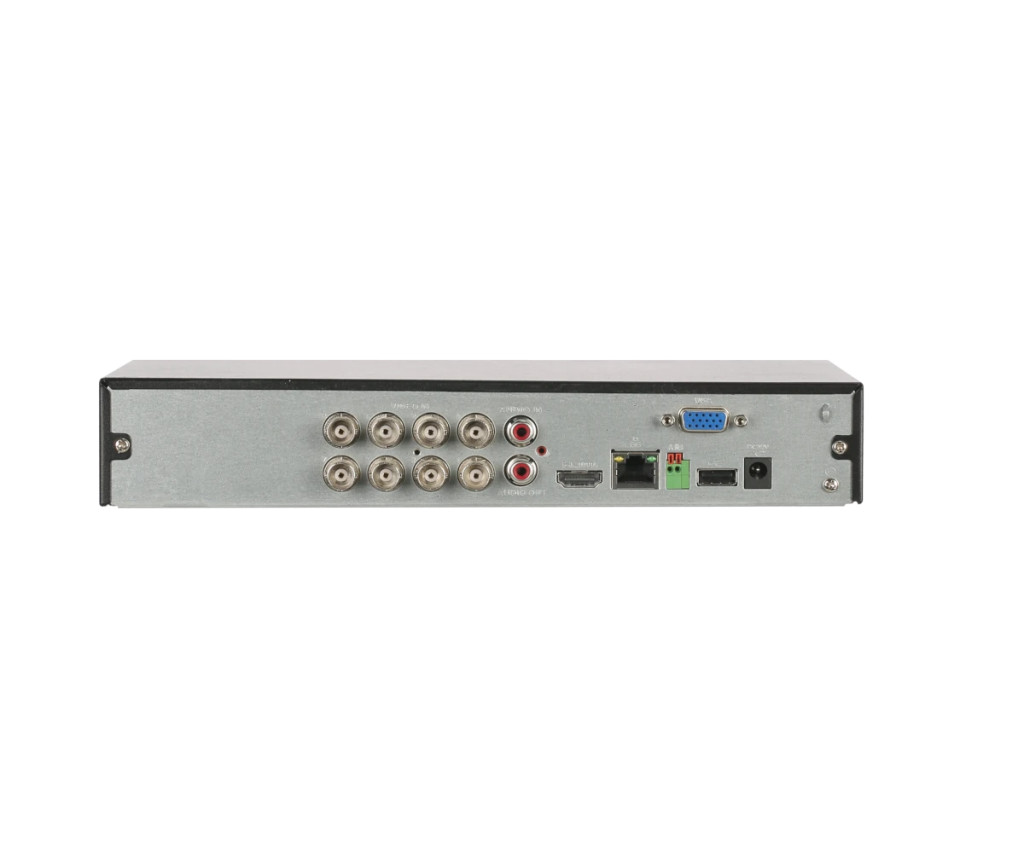

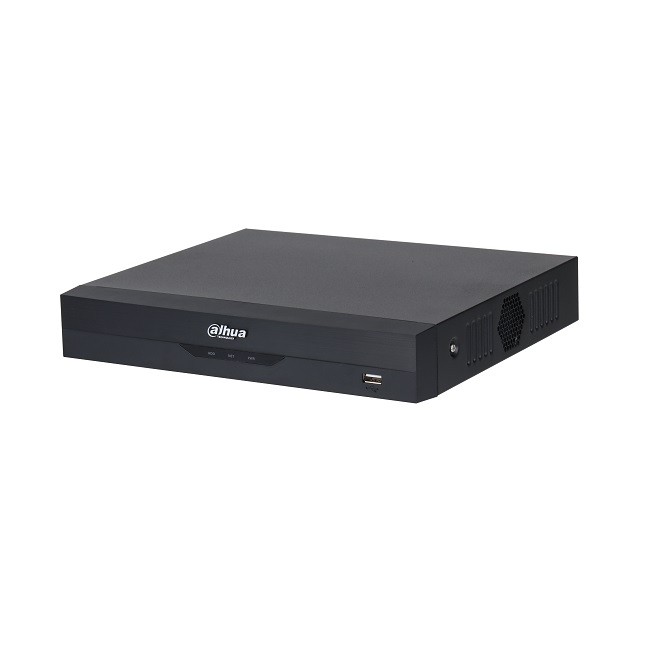

1 pc Dahua HDCVI 8-channel 5MP 2K hybrid XVR recorder with advanced human and vehicle detection

The Dahua HDCVI 2K desktop DVR recorder is designed to deliver maximum flexibility and high resolution. Thanks to the HDMI output, footage can be viewed on a large-screen TV, and a computer monitor can also be connected. The XVR recorder supports 8 channels of HDTVI/AHD/CVI/CVBS and 4 IP channels (by converting analogue to IP, a total of 12 channels) at up to 5MP 2K, 20 FPS/channel. Advanced object detection is available on the analogue channels, distinguishing vehicles and human shapes from other objects such as leaves or lights, significantly reducing false alarms. It includes 1 x SATA port (max. 16TB HDD, not included), 2 x USB 2.0 ports, and a 100 Mbps RJ-45 network port.

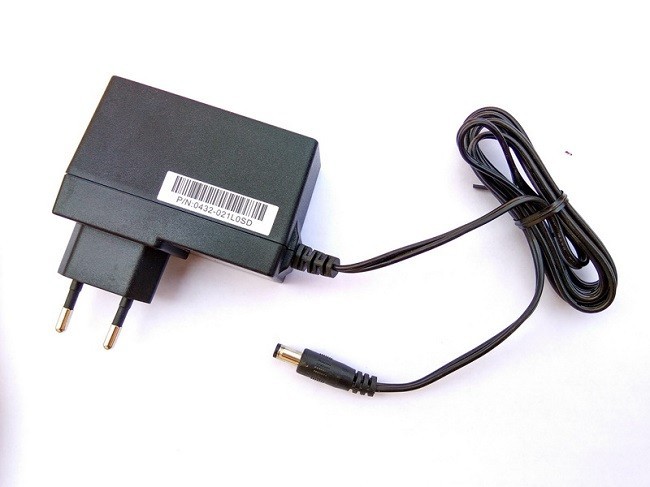

Complete camera system installation kit with all essential components

For our camera systems, customers can choose between two packages: DIY kit and pre-assembled cable kit.

DIY kit: From each camera to the central unit you only need to run a single cable, which carries both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the cable ends – to help with this, we have prepared an installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 metres of UTP cable per camera. If you need more cable, simply indicate this in the order comment field (+180 Ft/metre).

Pre-assembled cable kit: In this case, the connectors are factory-fitted on the camera cables and cannot be removed, so you only need to connect the recorder, camera power supply and camera – no wiring work required. The basic package includes 10 metres of COX10 cable per camera. If you need longer cables, you can indicate this in the order comment field (also available in 20 m COX20 and 30 m COX30 versions).

Mobile access via DMSS app, with Hungarian language support

The Dahua DMSS app allows users to manage all their security devices from a single platform. The application currently supports 29 languages, including Hungarian. It offers live view, playback and device configuration. Users can customise notifications and manage devices remotely. The app also allows you to share camera access with family members or relatives. To download it, search for "DMSS" in the Play Store or App Store.

Frequently Asked Questions (FAQ) about the camera system

• Can I view the cameras and recordings over the internet? Yes, if you connect the DVR recorder to the internet and download the manufacturer’s app or software to your mobile phone or computer. This gives you remote access to recorded images and live video, so you can monitor the area from anywhere with an internet connection.
• Can I use the camera system without an internet connection? Yes, the DVR recorder does not require an internet connection if you only want to view the recordings locally. The DVR needs an internal hard drive (HDD, not included with the camera systems) that provides enough storage for the recorded footage. You can replay the recordings stored on the hard drive at any time.
• Is it better to set motion detection or continuous recording on the DVR? We recommend motion detection, as the DVR only records when movement is detected, reducing storage usage and drive wear. This saves time when reviewing footage and makes it easier to jump directly to relevant events.
• Do I need to delete old recordings after a certain time? You do not need to manually delete recordings after a certain period, as the system manages storage automatically. When the hard drive reaches full capacity, the DVR overwrites the oldest recordings.
• What is the maximum cable length I can use for the cameras? The recommended maximum cable length is 30 metres to ensure stable power supply to the cameras. Longer distances may cause operating issues. For greater distances, a regulated power supply or a closer power source for the camera is required.
• What is the warranty period and how is service handled in case of failure? The camera system comes with a 2-year warranty. In case of a fault, please contact us by email at orkodowebaruhaz@gmail.com.

Data

Biztonsági kamerák száma:

8

Kameradesign:

Cső

Area of ​​use:

Kültér és beltér

Functions:

, ,

Reviews

Be the first to write a review!

Write a review

Használati útmutató

Az alábbi linken található a rőgzítőhöz tartozó leírás:

https://orkodo.hu/shop_ordered/4402/pic/Dahua-leiras.PDF
