12V 10A UPS-ready power supply in lockable metal box with 9 power outputs

• Details
• Reviews

Details

EU-12V-10A-9CH adjustable CCTV power supply with 9 outputs

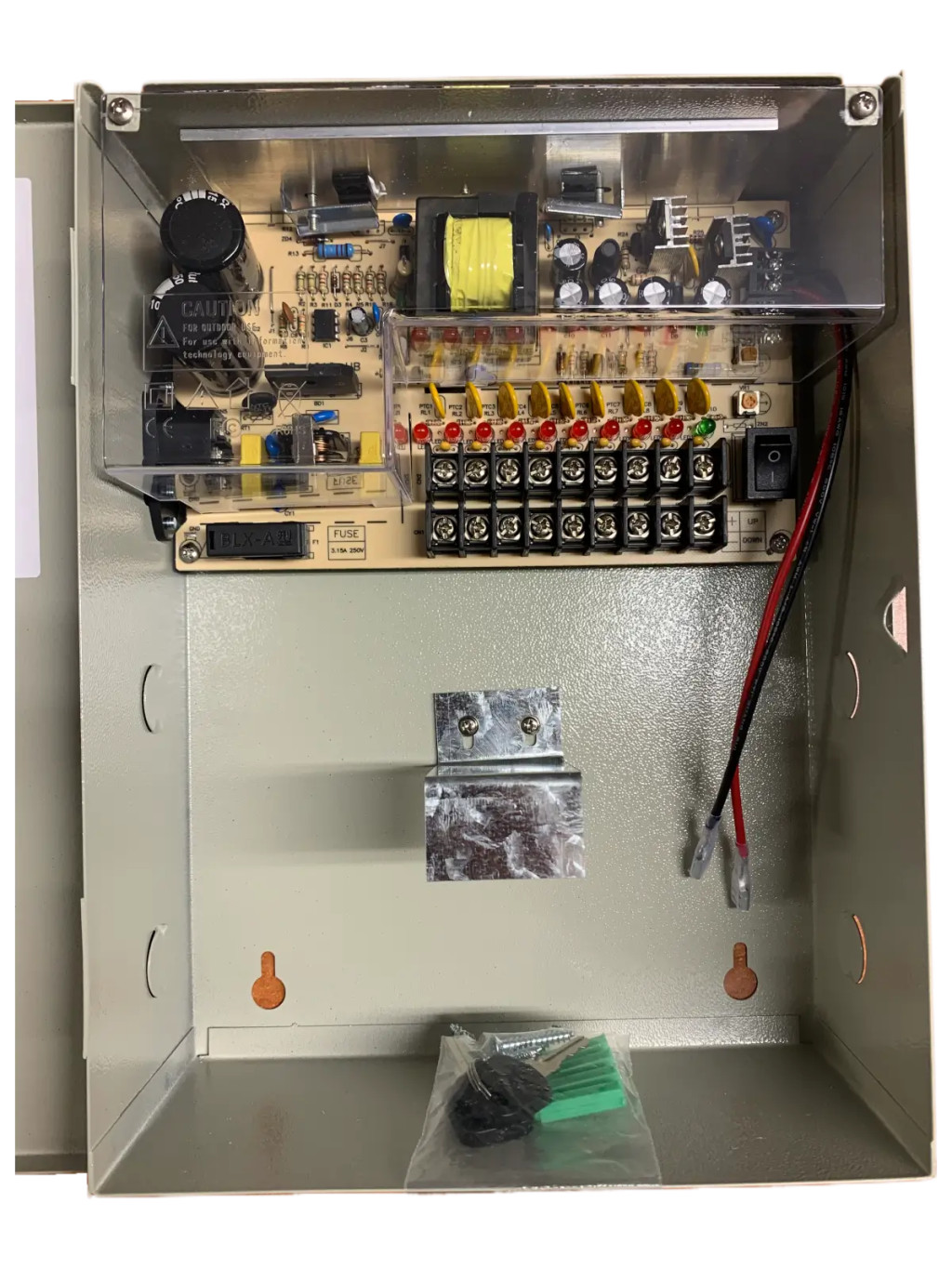

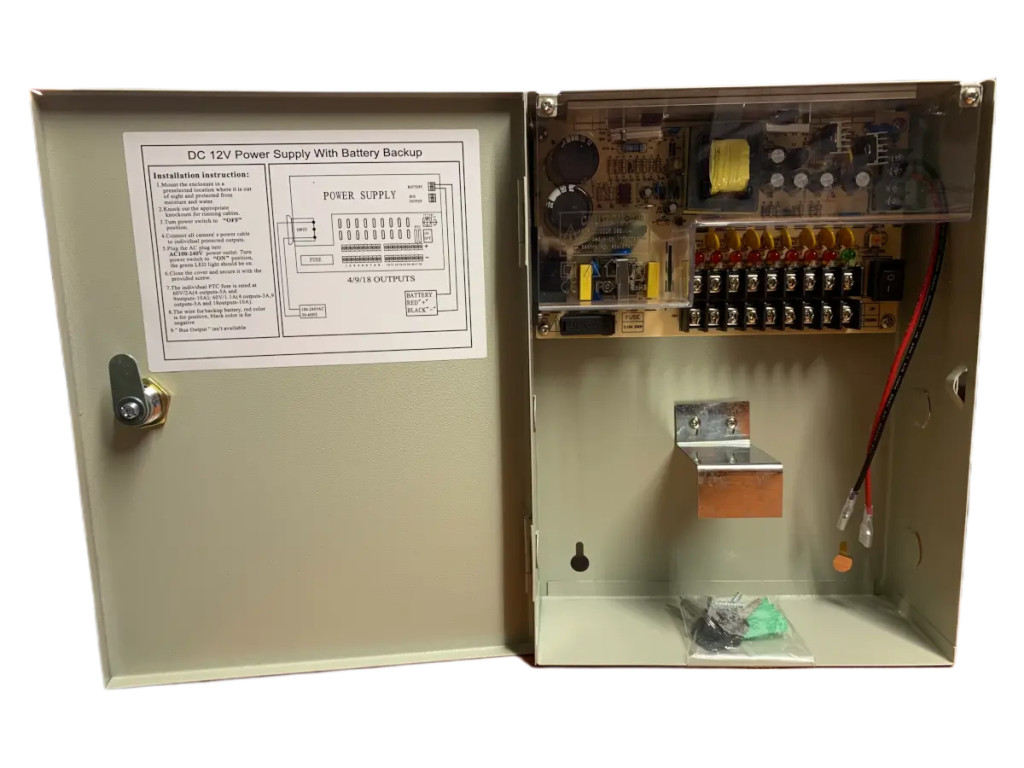

This power supply offers 9 separate outputs, allowing it to power multiple cameras at the same time. Wiring is simple thanks to the screw terminal connections. For enhanced safety it features overvoltage, short-circuit and overcurrent protection, with self-resetting fuses on each output. The maximum load capacity is 10A. It comes in a robust metal housing that can be locked with the supplied keys.

Technical specifications:

• Input voltage: AC 100–240V
• Output voltage: DC 12V 10A
• Current: max. 10A
• Protection against overvoltage, overload and short circuit
• 9 distributed outputs
• LED indicator

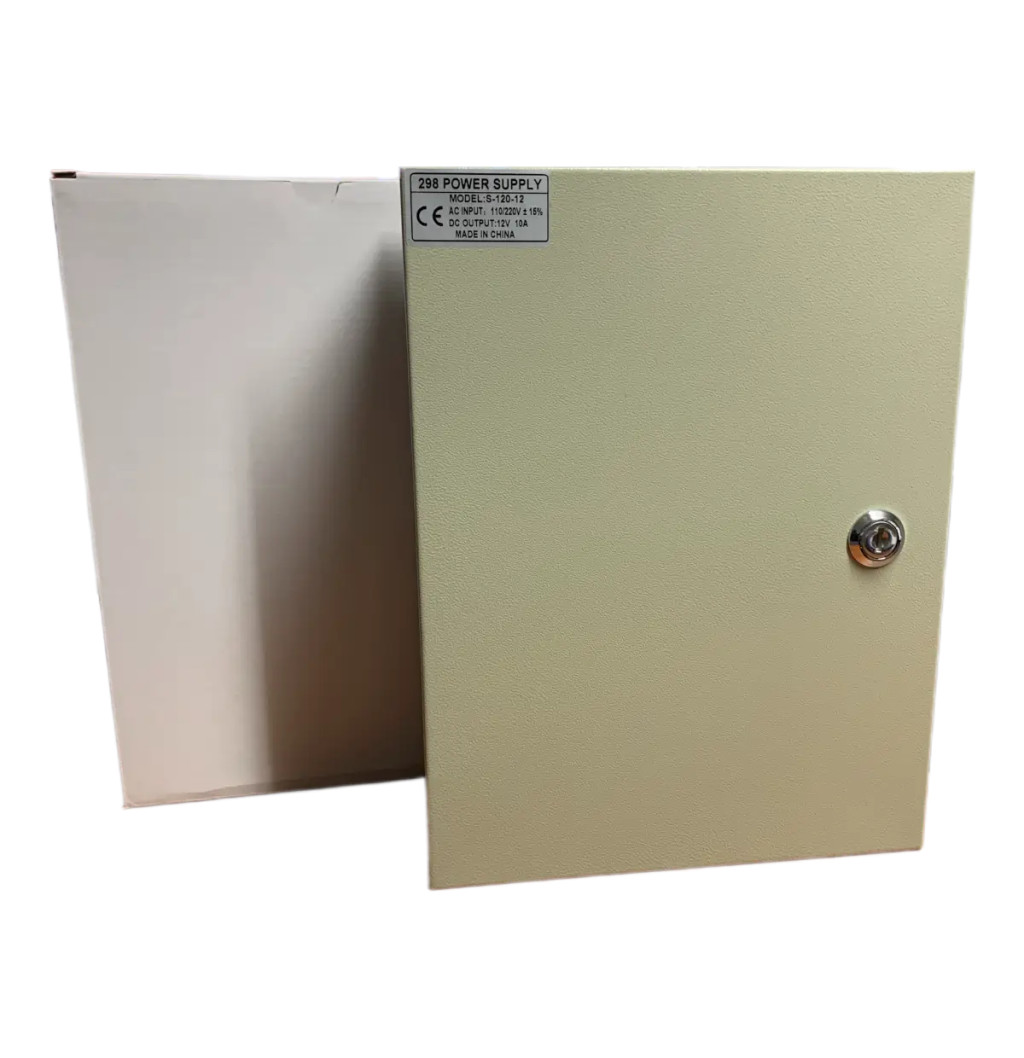

• Lockable metal enclosure with key
• UPS-ready with backup battery support (BATTERY NOT INCLUDED)
• Input: 90–240V 50–60Hz
• Output power: 120W
• Output voltage: 12V
• Output current: 10A
• Output channels: 9 channels
• Operating temperature: -20℃ to +60℃, 10%–90% relative humidity
• Efficiency: ≥80%
• Dimensions: 265 × 205 × 85 mm
• Weight: 1.65 kg
