Hikvision DS-7104HGHI-M1(C) 4-channel 2MP analog recorder

We also recommend the following product as an accessory

• Details
• Data
• Reviews

Details

Hikvision TurboHD 4-channel 2MP hybrid DVR recorder with Motion Detection 2.0 analytics

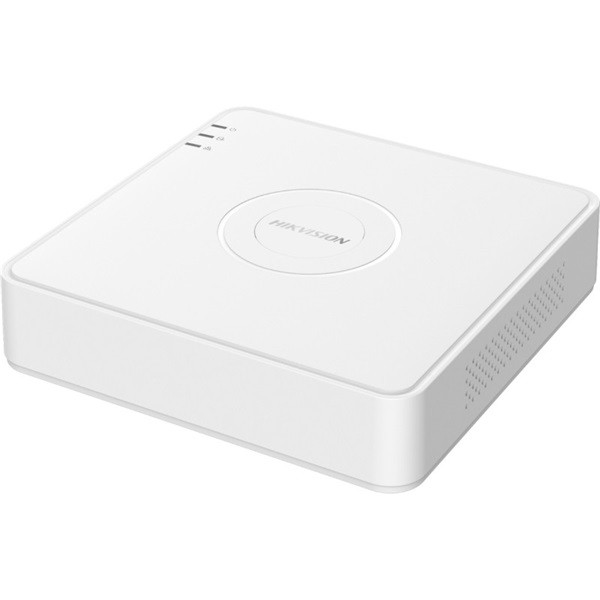

The Hikvision TurboHD-TVI DS-7104HGHI-M1(C) desktop DVR recorder is designed to deliver maximum flexibility and high resolution. It supports and records in Full HD 1080p resolution. Thanks to the HDMI connection, footage can be viewed on a large-screen TV or a computer monitor. This XVR recorder handles 4 HDTVI/AHD/CVI/CVBS channels and 5 IP channels at up to 2MP Full HD, 30 FPS per channel. Motion Detection 2.0 is available on the analog channels, capable of distinguishing vehicles and human shapes from other objects such as leaves or lights, significantly reducing false alarms. It includes 1 x SATA port (max. 4TB HDD, not included), 2 x USB 2.0 ports, and a 100 Mbps RJ-45 network port. Compatible with the Hik-Connect app, so you can view your security cameras remotely via the internet from your phone or computer.

2

MEGAPIXEL

Maximum resolution

4 TB

MAX CAPACITY

Maximum storage capacity

4

CHANNELS

Connect up to 4 cameras

H.265+

VIDEO COMPRESSION

Up to 75% more efficient than older systems

Detailed technical specifications

VIDEO SYSTEM	Analog HD
MEGAPIXELS	2 MP
VIDEO STANDARDS	AHD, TVI, CVI, CVBS, IP
ANALOG CHANNELS	4
IP CHANNELS	1
SWITCHABLE CHANNELS	4
COMPRESSION	H.264, H.265, H.265+
UPSTREAM BANDWIDTH TO CLIENTS	64 Mbit/s
MAXIMUM CAMERA RESOLUTION	AHD: 2 MP, CVI: 2 MP, CVBS: WD1, IP: 2 MP
ANALOG HD RECORDING PER CHANNEL	1080p: 25 fps, 720p: 25 fps
IP RECORDING PER CHANNEL	25 fps

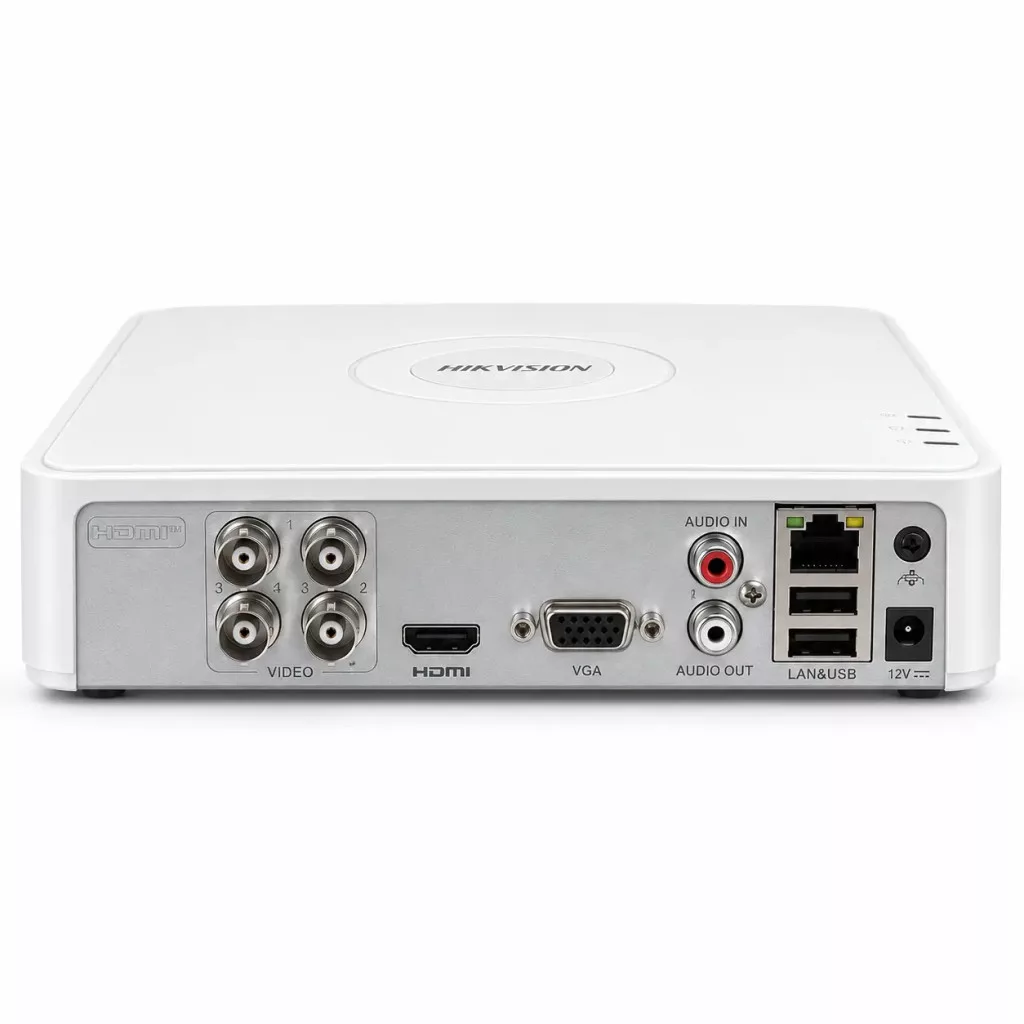

OUTPUTS	1 x HDMI, 1 x VGA
HDMI	1 pc
HDMI AND VGA	Same content
HDMI1	Full HD (1920x1080)
VGA1	Full HD (1920x1080)

AUDIO INPUT	From 4 cameras + 1 RCA (for two-way audio)
AUDIO OUTPUT	1 RCA
BUILT-IN HDD	1 pc
HDD TYPE	3.5" SATA HDD (max: 4 TB / HDD) (not included)
MAX HDD SIZE	4 TB (not included)
USB PORTS	2 x USB 2.0
LAN	1 x 10/100 Mb Ethernet
ON-SCREEN MENU	Hungarian language menu
PC SOFTWARE	Internet Explorer, Firefox, iVMS4200 (Windows PC), iVMS4200 (MAC OSX)
MOBILE CLIENT	iPhone, Android: Hik-Connect
ANALOG VCA	Motion detection
VIDEO ANALYTICS	Object classification
SMART SEARCH	Yes
TWO-WAY AUDIO	Yes
LOCAL PLAYBACK DISPLAY	4 channels
CLOUD ACCESS	Hik-Connect
ACCESSORIES	Mouse, CD, power adapter
OPERATING TEMPERATURE	-10 °C to 55 °C
POWER SUPPLY	12 V DC
POWER CONSUMPTION (WITHOUT HDD)	16 W
DIMENSIONS	200 × 200 × 45 mm
