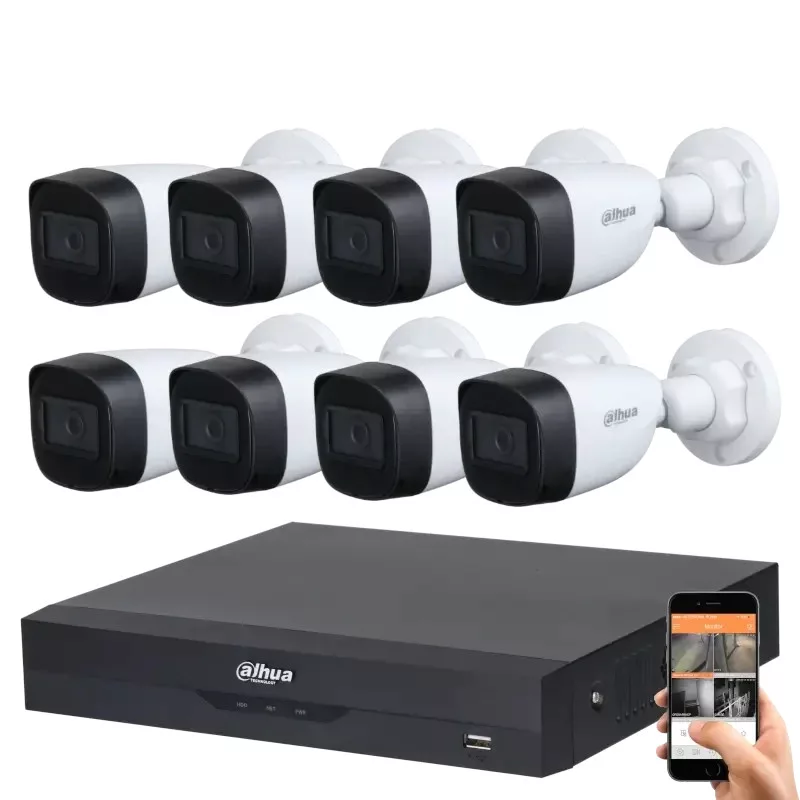

Dahua 5 Megapixel 8 Bullet Camera System with 30 m Night Vision

Key Features

• 5MP Dahua HDCVI bullet cameras for detailed 2K image quality
• 8-channel 5MP HDCVI hybrid XVR recorder (up to 12 channels with IP)
• Up to 30 m night vision in complete darkness with Starlight IR LEDs
• IP67 weather-resistant camera housing for outdoor use
• Remote live view and playback via Dahua DMSS mobile app
• Flexible installation with DIY or pre-terminated cable packages

Cameras – 8 × Dahua HDCVI 5MP 2K Bullet

The Dahua HAC-HFW1500C 5MP security cameras provide clear images day and night. Thanks to integrated Starlight LEDs, the cameras offer night vision of up to 30 m even in complete darkness. The 2.8 mm lens delivers an approximately 100° field of view, making it suitable for monitoring larger areas such as yards, driveways, offices or warehouses.

The modern bullet design allows mounting on ceilings or walls. The durable plastic housing has an IP67 rating, meaning it is resistant to dust and water, so it can be reliably used outdoors in changing weather conditions.

Recorder – 1 × Dahua HDCVI 8-Channel 5MP 2K Hybrid XVR

The Dahua HDCVI 2K desktop XVR is designed for flexibility and high resolution. Via the HDMI output you can view footage on a TV or connect a computer monitor. The XVR supports:

• 8 channels HDTVI/AHD/CVI/CVBS
• plus 4 IP channels (up to 12 channels total when converting analogue to IP)
• up to 5MP 2K, 20 FPS per channel

On the analogue channels, advanced object detection is available, which helps distinguish vehicles and people from other moving objects such as leaves or light changes. This significantly reduces false alarms.

Interfaces:

• 1 × SATA port (supports up to 16 TB HDD, not included)
• 2 × USB 2.0
• 1 × 100 Mbps RJ-45 network port

The recorder interface is available in Hungarian and supports remote access for monitoring and playback via the internet.

Installation Package Options

You can choose between two installation packages depending on how you want to set up the system.

DIY Cable Package

With the DIY package, each camera requires only a single cable run to the central unit, carrying both power and video signal. The necessary connectors (video balun and power connector) are included and are fitted by the user. A detailed installation guide is available here:

• Szerelési, telepítési útmutató: https://orkodo.hu/shop_ordered/4402/pic/Kamera-rendszer-szerelesi-utmutato.pdf

No crimping tool is required, only basic tools such as side cutters, a screwdriver and a utility knife. The package includes 10 m of UTP cable per camera. If you need longer cables, you can specify this in the order notes (extra cost per additional meter as stated on the store page).

Pre-Terminated Cable Package

With the pre-assembled cable package, the connectors are already factory-fitted to the camera cables and cannot be removed. Installation is simplified to plugging the recorder, power supply and cameras together, with no cable assembly required.

The base package includes 10 m of COX10 cable per camera:

• 10 m COX10: https://orkodo.hu/COX10-RG59-DC-video-es-tap-kombinalt-kabel-10-Meter

If you need longer cables, you can request them in the order notes. Additional options:

• 20 m COX20: https://orkodo.hu/COX20-RG59-DC-video-es-tapkabel-20-Meter
• 30 m COX30: https://orkodo.hu/COX30-RG59-DC-video-es-tapkabel-30-Meter

Remote Access via DMSS Mobile App

The Dahua DMSS app allows you to manage your security devices from a single platform. The application supports multiple languages, including Hungarian, and offers:

• Live view from your cameras
• Playback of recorded footage
• Device configuration and basic settings
• Customisable notifications
• Remote sharing of camera views with family members or colleagues

You can download the app by searching for "DMSS" in the Google Play Store or Apple App Store, or from Dahua’s software page: https://software.dahuasecurity.com/en/dmss

Frequently Asked Questions (FAQ)

Can I watch live and recorded footage over the internet?

Yes. If you connect the DVR to the internet and install the manufacturer’s software or mobile app on your phone or computer, you can access live video and recordings remotely from anywhere with an internet connection.

Can the system work without an internet connection?

Yes. The DVR does not require internet to record and play back locally. You will need an internal hard drive (HDD, not included) to store the recordings. You can review the saved footage directly from the DVR.

Should I use motion detection or continuous recording?

Motion detection is generally recommended. The DVR records only when motion is detected, which optimises storage usage and reduces the amount of footage to review. This makes it easier and faster to find relevant events.

Do I need to delete old recordings manually?

No. The DVR automatically overwrites the oldest recordings once the hard drive reaches full capacity. Manual deletion is not required under normal operation.

What is the maximum recommended cable length for the cameras?

The recommended maximum cable length for supplying power to the cameras is around 30 m. Longer distances may affect camera performance. For greater distances, a regulated power supply or local power near the camera may be necessary.

What is the warranty period and how is service handled?

The camera system comes with a 3-year warranty. In case of a fault, please contact customer service via email at: orkodowebaruhaz@gmail.com.
