Amiko XVR400 4-channel Hybrid AHD DVR recorder

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Használati útmutató

Details

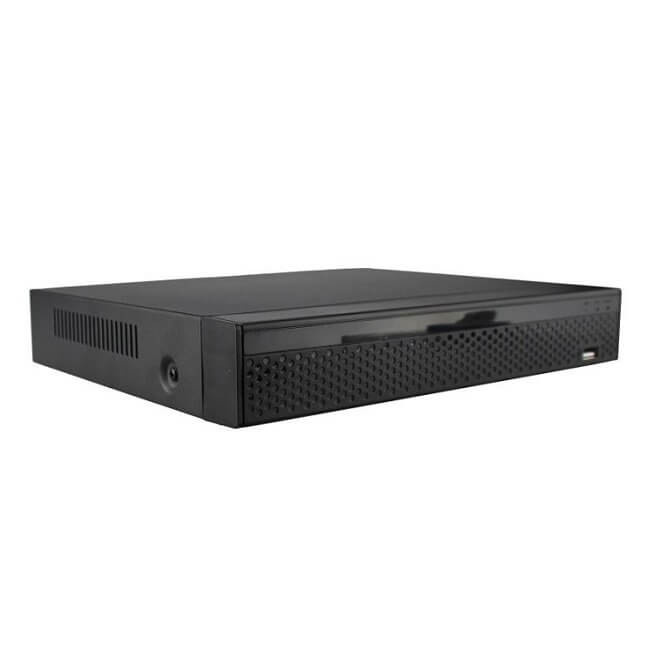

Amiko XVR400 4-channel Hybrid AHD DVR recorder for 2 Megapixel cameras

The Amiko XVR400 recorder can handle standard analog (960H), analog HD (720P), analog Full HD (1080N) and IP NVR (720P, 1080P) resolutions. You can connect multiple camera types at the same time, such as AHD and IP cameras. The recorder supports 2MP, meaning the live view is 1920x1080, while the recorded footage resolution is 960x1080. Recording modes include motion detection, continuous and scheduled recording. The unit has two video outputs (VGA, HDMI), allowing connection to a standard monitor or a Full HD TV. With remote access over a permanent internet connection, the system can stream to smartphones, tablets and PCs, so you can check live footage anytime, from anywhere. Using an internal hard drive, the DVR records the camera images, supporting up to 8TB capacity /NOT INCLUDED/.

2

MEGAPIXEL

Maximum resolution

8 TB

MAX STORAGE

Maximum storage capacity

4

CHANNELS

Connect up to 4 cameras

H.264

VIDEO COMPRESSION

Efficient video compression

Detailed technical specifications

Video:
Input:	Analog: 4*1080P
Analog + Network:	2*Analog (1080P) + 4*Network
Network:	9*1080P/960P/720P (Total incoming bandwidth ≤46M)
Input:	8CH BNC
Signal type:	Analog/AHD/CVI/TVI 2.0/Network
Output:	1 HD, 1 VGA
Audio:
Input:	4 channels, RCA
Output:	1 channel, RCA
Display:
VGA:	Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HD output:	Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display split:	9 channels/4 channels/1 channel
Privacy masking:	3 rectangular zones (per camera)
OSD:	Camera title, Time, Video loss, Alarm, Motion detection, Recording

Network:
Interface:	1 RJ45 10M/100M adaptive Ethernet interface
Network functions:	TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNS:	Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
Web browser:	IE8-11, Google Chrome (below Ver44), Firefox (below Ver53)
CMS software:	Supports Windows 7/Windows 8/Windows 10
Sub stream:	CIF (1~25fps)
Smartphone:	iPhone, iPad, Android, Android pad
Hard disk drive:
Interface type:	1 SATA interface
Capacity:	1 SATA hard disk (2.5"/3.5" SATA, up to 8TB)
Physical specifications:
USB interface:	2 USB 2.0 interfaces
Power consumption:	DC 12V ≤6W (without hard disk)
Operating environment:	-10~55℃ / 10~90%
Dimensions (W×D×H):	260*215*43 (mm)
Weight:	2kg (without hard disk)

Data

Functions:

,

Reviews

Be the first to write a review!

Write a review

Használati útmutató

Az alábbi linken töltheti le az Amiko rögzítőkhöz tartozó leírást:

https://orkodo.hu/shop_ordered/4402/pic/XVR_rogzito_felhasznaloi_utmutato_5_0.pdf

Bejelentkezési adatok:

• Felhasználónév: admin
• Jelszó: 12345
