Dahua 5 Megapixel 4 Bullet Camera System with 30 m Night Vision

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Használati útmutató

Details

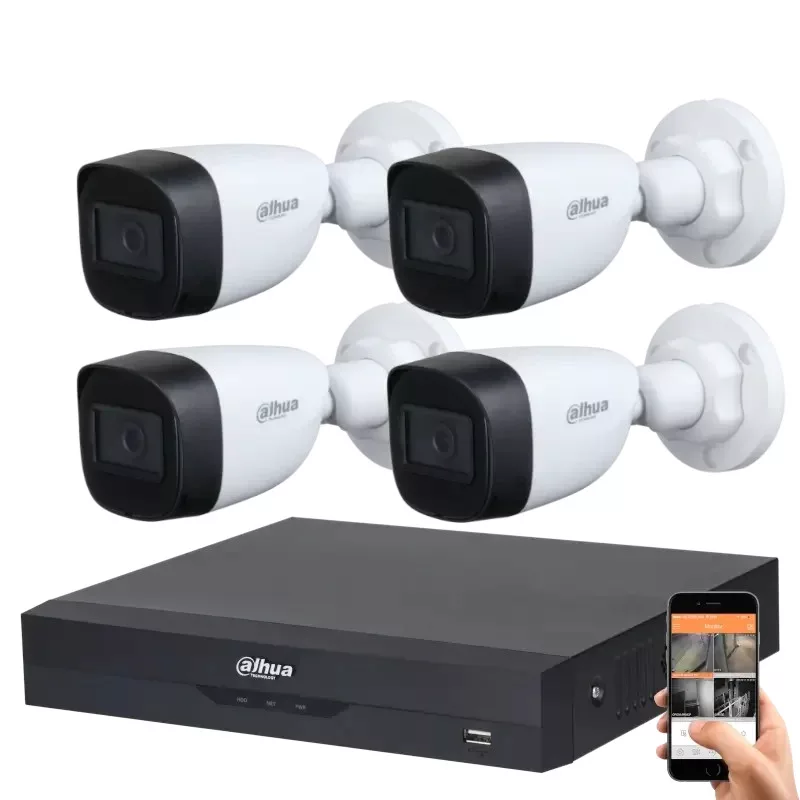

4-camera Dahua security system, 5MP 2K resolution with 30 m night vision

Our Dahua 5 Megapixel security camera kit is an ideal solution for reliable indoor and outdoor surveillance of family homes, offices, apartments and business premises. The package includes four 5 MP, 2K resolution security cameras that deliver excellent image quality even in complete darkness up to 30 metres, thanks to the built-in Starlight infrared LEDs. The camera system also comes with a 4-channel HDCVI 5 MP XVR digital recorder with remote access, so you can view and manage your system from your phone. The recorder interface is available in Hungarian. With the included installation kit (camera power supply, video balun, UTP cable, power connector) the system is easy to install and operate, making it a great choice for anyone looking for a dependable security solution.

5

MEGAPIXEL

Dahua HDCVI camera

4

CHANNELS

Connect up to 4 cameras to the DVR

30 m

NIGHT VISION

Maximum viewing distance in complete darkness

IP67

RATING

Weather-resistant housing

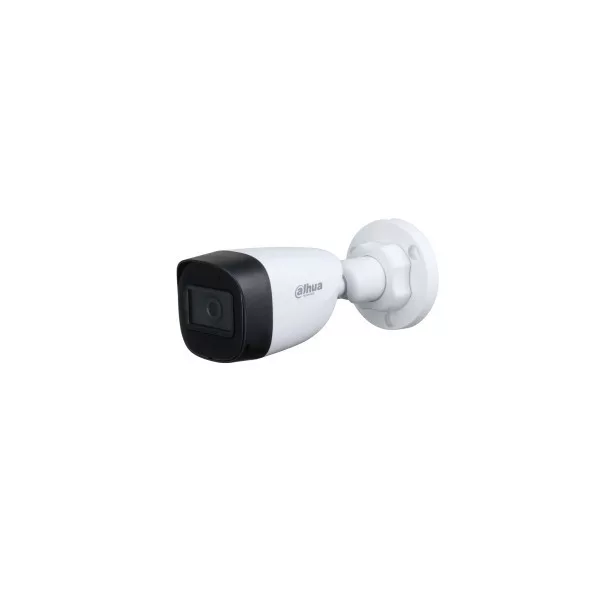

4 x Dahua HDCVI 5MP 2K security camera

The Dahua HAC-HFW1500C 5MP security camera provides up to 30 metres night vision range with its built-in Starlight LEDs, so you get a clear image even without external lighting. The 2.8 mm lens offers an approximately 100° field of view, allowing you to monitor a wider area. The modern bullet design of the Dahua security camera makes it suitable for both ceiling and wall mounting. The plastic housing has an IP67 water- and dust-resistant rating, so it stands up to changing weather conditions outdoors.

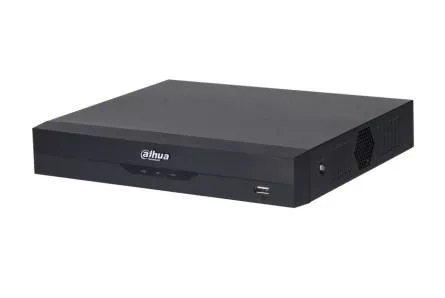

1 x Dahua HDCVI 4-channel 5MP 2K hybrid XVR with advanced human and vehicle detection

The Dahua HDCVI 2K desktop DVR is designed to deliver maximum flexibility and high-resolution recording. Thanks to the HDMI output, footage can be viewed on a large-screen TV or on a computer monitor. The XVR supports 4 channels of HDTVI/AHD/CVI/CVBS and 2 IP channels (by converting analogue to IP, a total of 6 channels) at up to 5MP 2K, 20 FPS per channel. On the analogue channels, advanced object classification is available, which can distinguish vehicles and human figures from other motion such as leaves or light changes, significantly reducing false alarms. It includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network port.

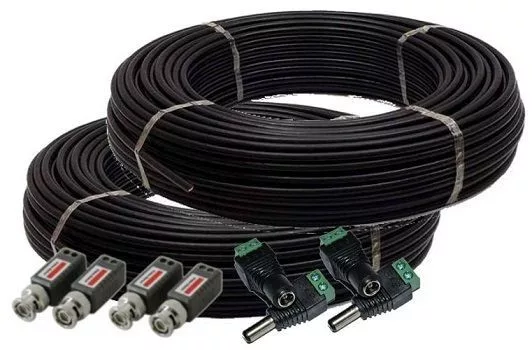

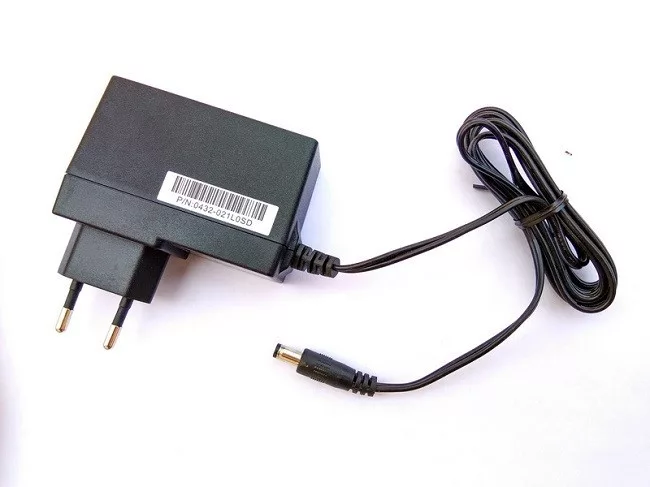

Complete installation kit with all essential components

For our camera systems, customers can choose between two cabling packages: DIY kit or pre-terminated cable kit.

DIY kit: From each camera to the recorder you only need to run a single cable that carries both power and video signal. The necessary connectors (video balun + power connector) are fitted by the customer to the cable ends – to help with this, we have created a step-by-step installation guide available at the following link: Installation guide (HU). With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 metres of UTP cable per camera. If you need longer cable, simply indicate this in the order comments (+180 Ft/metre).

Pre-terminated cable kit: In this case, all connectors are already factory-fitted to the camera cables and cannot be removed, so you only need to plug the recorder, power supply and cameras together – no wiring work required. The basic package includes 10 metres of COX10 cable per camera. If you need longer cable, note this in the order comments (20 m COX20 and 30 m COX30 options are also available).

Mobile access via DMSS app, with Hungarian language support

The Dahua DMSS app allows users to manage all their Dahua security devices from a single platform. The application currently supports 29 languages, including Hungarian. It offers live view, playback and device configuration. Users can customise notifications and manage devices remotely. The app also lets you share camera access with family members. To download, search for "DMSS" in the Play Store or App Store.

Frequently Asked Questions (FAQ) about the camera system

• Can I view live images or recordings from the cameras over the internet? Yes, if you connect the DVR to the internet and install the manufacturer’s app or software on your smartphone or computer. This provides remote access to both live view and recorded footage, so you can monitor your property from anywhere with an internet connection.
• Can I use the camera system without an internet connection? Yes, the DVR does not require an internet connection if you only want to view recordings locally. The DVR needs an internal hard drive (HDD, not included with the camera kits) that provides enough storage for the recorded footage. You can replay recordings stored on the hard drive at any time.
• Should I set motion detection or continuous recording on the DVR? Motion-triggered recording is recommended, as the DVR only records when movement is detected. This reduces storage use and wear on the drive, and makes it easier and faster to review only the relevant events.
• Do I need to delete recordings manually after a certain time? No manual deletion is required. The DVR automatically overwrites the oldest recordings once the hard drive reaches full capacity, so storage is managed by the system.
• What is the maximum recommended cable length for the cameras? The recommended maximum cable length for powering the cameras is 30 metres. Beyond this distance, voltage drop may affect camera performance. For longer runs, a regulated power supply or closer power source is recommended.
• What is the warranty period and how is a fault handled? The camera system comes with a 3-year warranty. In case of a fault, please contact us by email at: orkodowebaruhaz@gmail.com.

Data

Biztonsági kamerák száma:

4

Kameradesign:

Cső

Area of ​​use:

Kültér és beltér

Functions:

, ,

Reviews

Be the first to write a review!

Write a review

Használati útmutató

Az alábbi linken található a rőgzítőhöz tartozó leírás:

https://orkodo.hu/shop_ordered/4402/pic/Dahua-leiras.PDF
