Dahua 5 Megapixel 1 Bullet Camera System with 30 m Night Vision

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Használati útmutató

Details

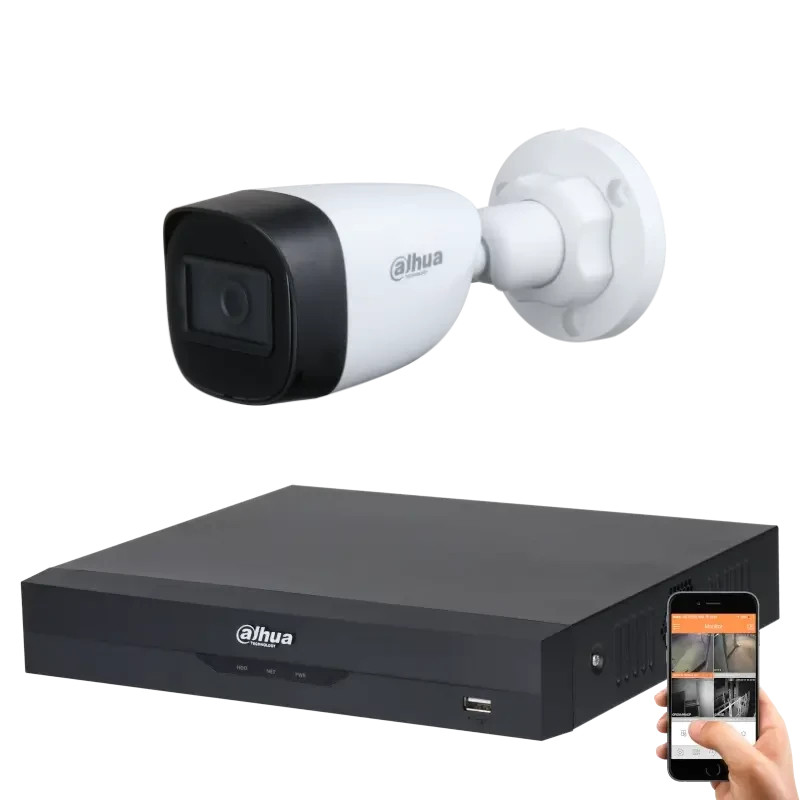

1-camera Dahua security system, 5MP 2K resolution with 30 m night vision range

Our Dahua 5 megapixel security camera kit is an effective solution for outdoor and indoor monitoring of family homes, offices, apartments and business premises. The package includes a 5 megapixel, 2K resolution security camera that delivers clear images even in complete darkness up to 30 metres thanks to its built-in Starlight IR LEDs. The system also comes with a 4-channel HDCVI 5 MP XVR digital recorder with remote access, so you can view and manage footage from your phone. The recorder’s interface is available in Hungarian. With the included installation kit (camera power supply, video balun, UTP cable, power connector) the system is easy to install and operate, making it an ideal choice for those looking for a reliable security solution.

5

MEGAPIXEL

Dahua HDCVI camera

4

CHANNELS

Connect up to 4 cameras to the DVR

30 m

NIGHT VISION RANGE

Maximum viewing distance in complete darkness

IP67

RATING

Weather-resistant housing

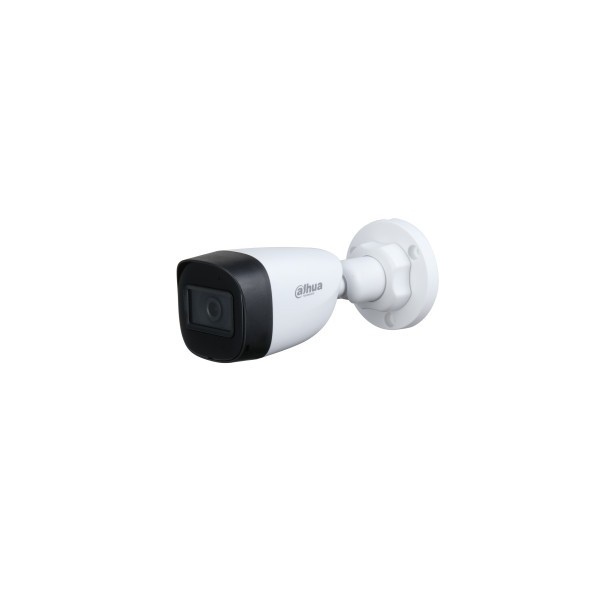

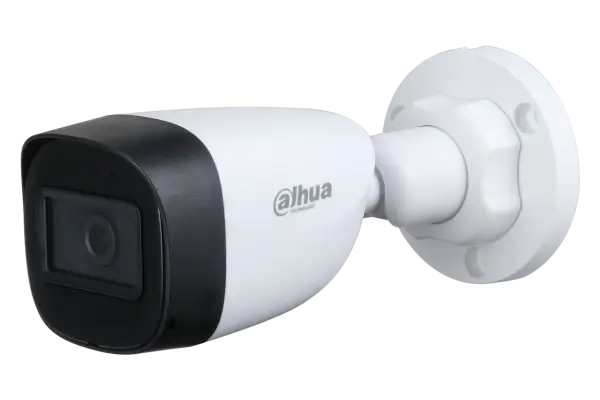

1 x Dahua HDCVI 5MP 2K security camera

The Dahua HAC-HFW1500C 5MP security camera offers up to 30 m night vision range with its built-in Starlight LEDs, so you get a clear view even without external lighting. The 2.8 mm lens provides an approx. 100° field of view, allowing you to monitor a wider area. The modern bullet design of the Dahua camera makes it suitable for both ceiling and wall mounting. The plastic housing has an IP67 water- and dust-resistant rating, so it withstands changing weather conditions.

1 x Dahua HDCVI 4-channel 5MP 2K hybrid XVR with advanced human and vehicle detection

The Dahua HDCVI 2K desktop DVR is designed to deliver high flexibility and high resolution. Thanks to the HDMI output, footage can be viewed on a large-screen TV or a computer monitor. The XVR supports 4 channels of HDTVI/AHD/CVI/CVBS and 2 channels of IP (by converting analogue to IP you can use up to 6 channels in total) at up to 5MP 2K, 20 FPS/channel. On the analogue channels, advanced object classification is available, which can distinguish vehicles and human shapes from other objects such as leaves or lights, significantly reducing false alarms. It includes 1 x SATA port (max. 6 TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network port.

Camera system installation kit with all essential components

For our camera systems you can choose between two installation kits: DIY kit and pre-assembled cable kit.

DIY kit: From each camera to the central unit you only need to run 1 cable, which carries both power and video signal. The required connectors (video balun + power connector) are fitted by you to the ends of the cable – to help with this, we have created an installation guide available at the link below: Installation and setup guide. With some basic technical skills, the system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 m of UTP cable per camera. If you need more cable, you can let us know in the order comments (+180 Ft/meter).

Pre-assembled cable kit: In this case, the connectors are factory-fitted to the ends of the camera cables and are not removable, so you only need to connect the recorder, camera power supply and camera – no wiring work required. The basic package includes 10 m COX10 cable per camera. If you need longer cables, you can specify this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).

Mobile access via DMSS app, with Hungarian language support

The Dahua DMSS app allows users to manage their security devices from a single platform. The application currently supports 29 languages, including Hungarian. It offers live view, playback and device configuration. Users can customise notifications and manage devices remotely. The app also lets you share camera views with family members or other trusted people. To download, search for "DMSS" in the Play Store or App Store.

Frequently Asked Questions (FAQ) about the camera system

• Can I view live images and recordings over the internet? Yes, if you connect the DVR to the internet and install the manufacturer’s app or software on your smartphone or computer. This gives you remote access to recorded footage and live video, so you can monitor the area from anywhere with an internet connection.
• Can I use the camera system without an internet connection? Yes, the DVR does not require an internet connection if you only want to view recordings locally. The DVR needs an internal hard drive (HDD, not included with the systems), which provides sufficient storage for the recorded footage. You can play back the recordings stored on the hard drive at any time.
• Should I set motion detection or continuous recording on the DVR? We recommend motion detection, as the DVR records only when motion is detected, which reduces storage use and wear on the drive. This saves time when reviewing footage and makes it easier to jump directly to relevant events.
• Do I need to manually delete recordings after a certain period? No manual deletion is required, as the system manages storage automatically. When the hard drive reaches full capacity, the DVR overwrites the oldest recordings with new ones.
• What is the maximum recommended cable length for the cameras? The recommended maximum cable length is 30 m to ensure reliable power supply to the cameras. Longer distances may cause issues with camera operation. For greater distances, a regulated power supply is recommended, or the camera should be powered from a closer point.
• What is the warranty period and how is a fault handled? The camera system comes with a 3-year warranty. In case of a fault, please contact us by email at: orkodowebaruhaz@gmail.com.

Data

Biztonsági kamerák száma:

1

Kameradesign:

Cső

Area of ​​use:

Kültér és beltér

Functions:

, ,

Reviews

Be the first to write a review!

Write a review

Használati útmutató

Az alábbi linken található a rőgzítőhöz tartozó leírás:



https://orkodo.hu/shop_ordered/4402/pic/Dahua-leiras.PDF
