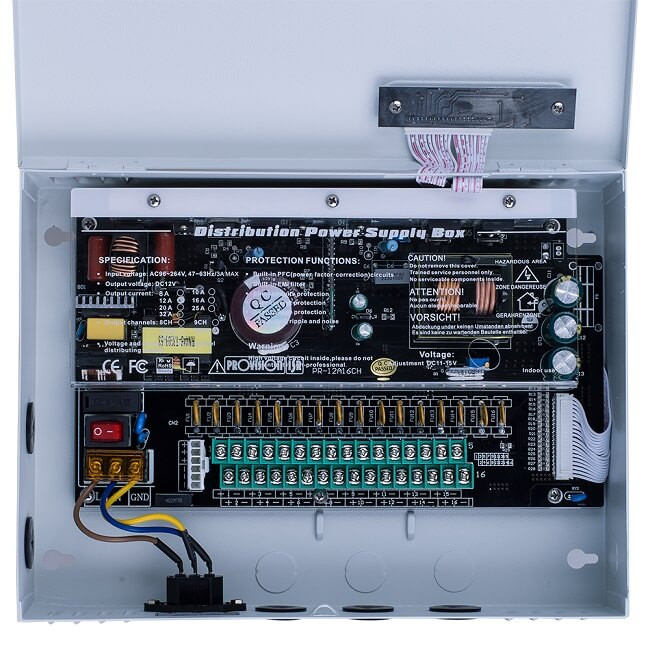

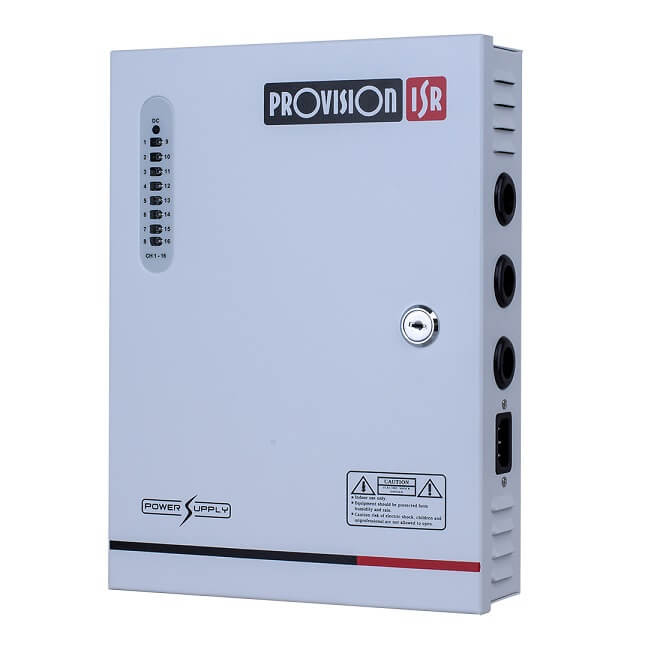

The Provision PR-12A16CH power supply offers 16 separate outputs, allowing you to power multiple cameras at the same time. Wiring is simple thanks to the screw terminal connection. For safety, the unit features overvoltage, short-circuit and overcurrent protection, with self-resetting fuses on each output. The output voltage is adjustable between 11–15VDC, with a maximum load of 12A. It comes in a robust metal enclosure that can be locked with the included keys.
Technical data:Number of outputs: 16Input voltage: AC100~240VFrequency: 47~63HzOutput voltage: DC12VOutput current: 12AAdjustable output voltage: DC11~15VOvercurrent protection: 6A ±5%Efficiency: ≥ 85%Backup battery support: NoEnclosure: MetalDimensions: 290 x 220 x 70 mm
