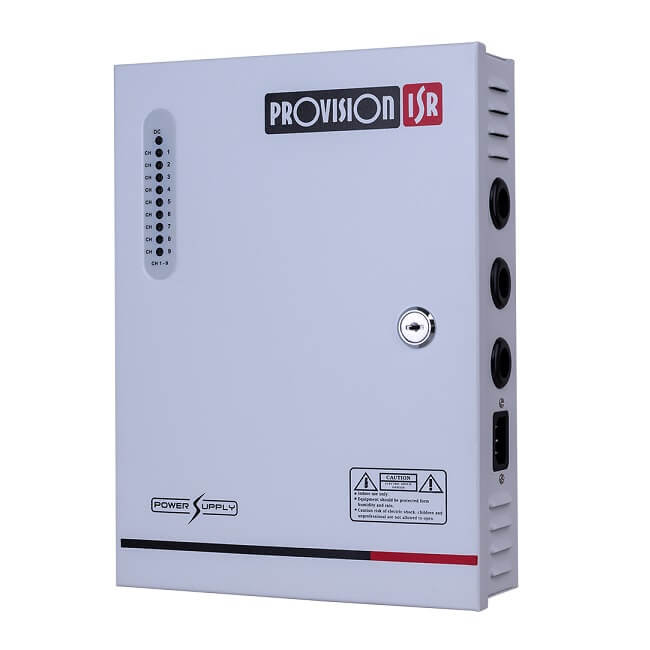

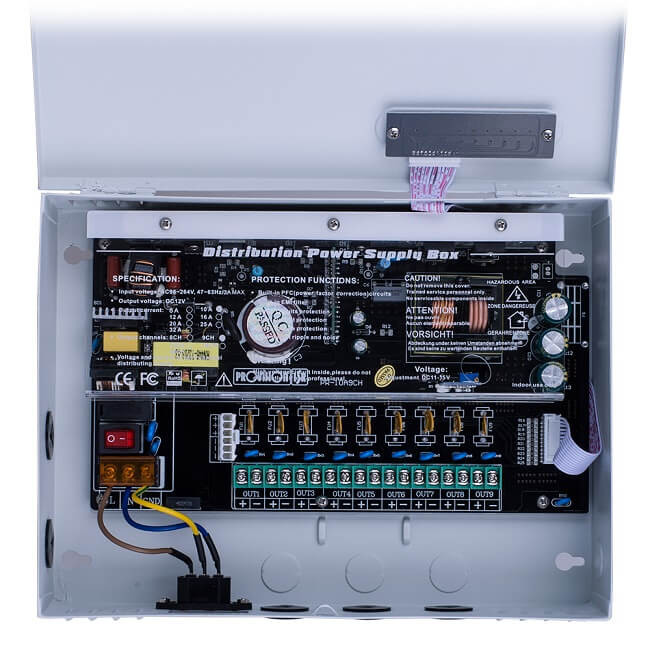

The Provision PR-10A9CH power supply features 9 separate outputs, allowing it to power multiple cameras at the same time. Wiring is simple thanks to the screw terminal connections. The power supply includes overvoltage, short-circuit and overcurrent protection for enhanced safety, with self-resetting fuses on each output. The output voltage is adjustable between 11–15V DC with a maximum load of 10A. It comes in a robust metal enclosure that can be locked with the supplied keys.
Technical specifications:Number of outputs: 9Input voltage: AC 100–240VFrequency: 47–63 HzOutput voltage: DC 12VOutput current: 10AAdjustable output voltage range: DC 11–15VOvercurrent protection: 6A ±5%Efficiency: ≥ 85%Backup battery support: NoEnclosure: MetalDimensions: 290 × 220 × 70 mm
